205 E Lugli diesel forklift specs & dimensions (1987 - 1997)

Model rating
8,00 / 10

The Lugli 205 E is a diesel forklift manufactured by Lugli from 1987 to 1997. It weighs 3.6 tons and has a nominal load capacity of 2 tons at the center of gravity, which is located at 500mm.

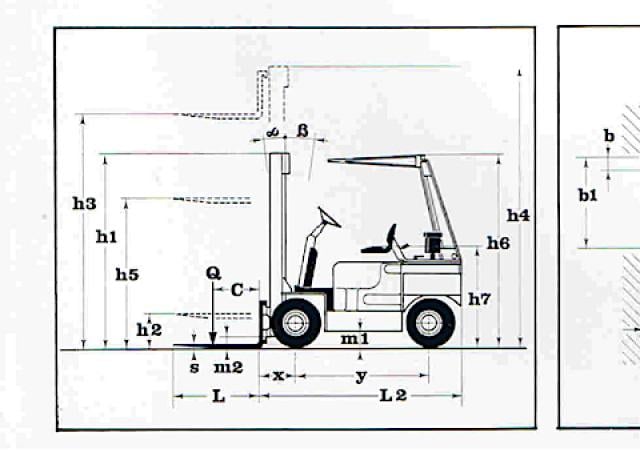

Lugli 205 E Dimensions and Size

Technical specs - 205 E Lugli

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
2 t
Centre of gravity
500 mm
Standard tyres
L 4
Transmission type
HY
Weight
3.6 t
Model series
E
Engine manuf.
Perkins
Engine type
3.152.4
Engine power
40 kW

More technical details, like: total width, construction height, turning radius, lifting height, travel speed with / without load, hoisting with / without load, lowering with load, max. climbing ability, dimension lxwxh, displacement, revolutions at max torque, max. torque...

More technical details, like: total width, construction height, turning radius, lifting height, travel speed with / without load, hoisting with / without load, lowering with load, max. climbing ability, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
