HT140D/1200 Linde diesel forklift specs & dimensions (2019 - 2026)

Name: Linde HT140D/1200 Diesel Forklifts
Brand: Linde

The Linde HT140/1200 is a diesel forklift manufactured since 2019. It has a weight of 22.113 tons and a nominal load at the center…

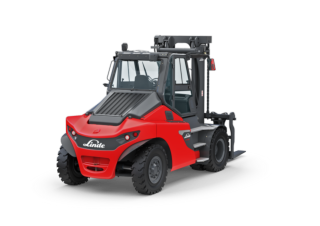

The Linde HT140/1200 is a diesel forklift manufactured since 2019. It has a weight of 22.113 tons and a nominal load at the center of gravity of 14 tons. The lifting height reaches up to 4 meters, with a center of gravity at 1200 mm. It has a maximum climbing ability of 55.6 percent. The hoisting speed, both with and without load, is 0 m/s, while the lowering speed with load is also 0 m/s. The total width of the forklift is 2565 mm, and it can travel at a speed of 28 km/h with or without load. The turning radius is 4.512 meters, and the construction height is 3035 mm.

HT140D/1200

Years of manufacture: 2019—2026

Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - HT140D/1200 Linde

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 14 t

Centre of gravity: 1200 mm

Standard tyres: 4x/2

Transmission type: HY

Weight: 22.113 t

Total width: 2565 mm

Construction height: 3035 mm

Turning radius: 4.512 m

Lifting height: 4 m

Travel speed with / without load: 28.1/29.8 km/h

Hoisting with / without load: 0.4/0.42 m/s

Lowering with load: 0.45/0.4 m/s

max. climbing ability: 55.6 %

Engine manuf.: Mercedes-Benz

Engine type: OM934

Engine power: 150 kW

Displacement: 5.1 l

Revolutions at max torque: 2200 rpm

No. of cylinders: 4

Emission level: V

More technical details, like: model series, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
