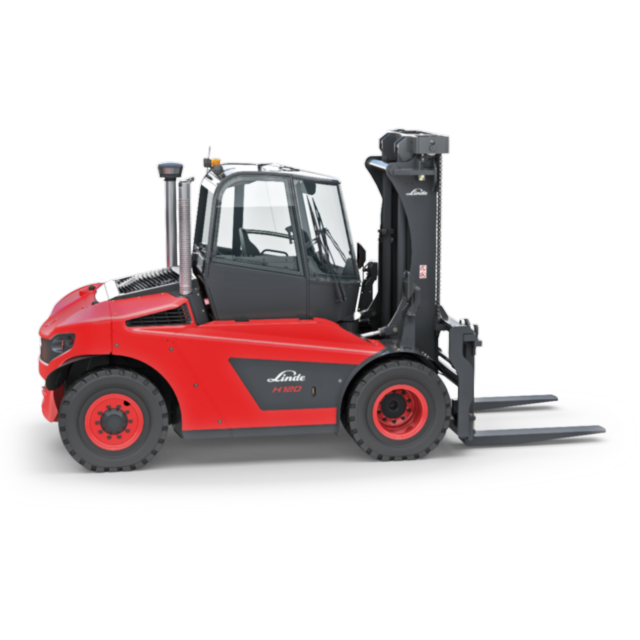

H100/1200 Linde diesel forklift specs & dimensions (2019 - 2026)

The Linde H100/1200 is a diesel forklift manufactured by Linde since 2019. It has a weight of 20.288 tons and a nominal load capac…

The Linde H100/1200 is a diesel forklift manufactured by Linde since 2019. It has a weight of 20.288 tons and a nominal load capacity of 10 tons at the center of gravity. The forklift can lift loads up to a height of 4 meters, with a center of gravity at 1200 mm. It has a maximum climbing ability of 23 percent. The hoisting speed with and without load is 0.42 m/s, while the lowering speed with load is 0.55 m/s. The forklift has a total width of 2545 mm and can travel at a speed of 29.7 km/h with or without load. It has a turning radius of 4.578 meters and a construction height of 3035 mm.

Diesel Forklifts Linde H100/1200

Technical specs - H100/1200 Linde

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
10 t
Centre of gravity
1200 mm
Standard tyres
4x/2
Transmission type
HY
Weight
20.288 t
Total width
2545 mm
Construction height
3035 mm
Turning radius
4.578 m
Lifting height
4 m
Travel speed with / without load
29.7/30 km/h
Hoisting with / without load
0.42/0.45 m/s
Lowering with load
0.55/0.43 m/s
max. climbing ability
23 %
Engine manuf.
Cummins
Engine type
QSB6.7
Engine power
149 kW
Displacement
6.7 l
Revolutions at max torque
2200 rpm
No. of cylinders
6
Emission level
V

More technical details, like: model series, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
