H 460 Linde diesel forklift specs & dimensions (2007 - 2020)

Name: Linde H 460 Diesel Forklifts
Brand: Linde

The Linde H 460 is a diesel forklift manufactured from 2007 to 2020. It has a weight of 54.14 tons and a nominal load at the cente…

The Linde H 460 is a diesel forklift manufactured from 2007 to 2020. It has a weight of 54.14 tons and a nominal load at the center of gravity of 46 tons. The lifting height reaches up to 10 meters, with a center of gravity at 1200 mm. It has a maximum climbing ability of 30.9 percent and a lowering speed with load of 0.5 m/s. The total width of the forklift is 4180 mm, and it has a turning radius of 7.6 meters and a construction height of 3425 mm.

H 460

Years of manufacture: 2007—2020

Data sheet
Buy & Rent
Spare parts
Transport
News

Technical specs - H 460 Linde

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 46 t

Centre of gravity: 1200 mm

Standard tyres: L 4x/2

Transmission type: W

Weight: 54.14 t

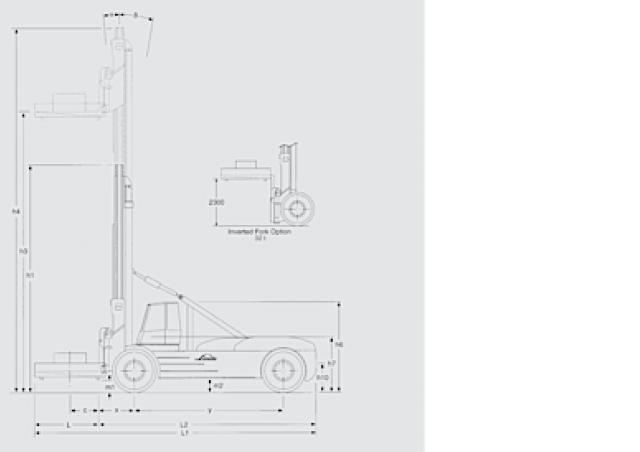

Total width: 4180 mm

Construction height: 3425 mm

Turning radius: 7.6 m

Lifting height: 10 m

Travel speed with / without load: 23.3/24.9 km/h

Hoisting with / without load: 0.3/0.4 m/s

Lowering with load: 0.5 m/s

max. climbing ability: 30.9 %

Model series: 356

Engine manuf.: Cummins

Engine type: QSM11

Engine power: 246 kW

More technical details, like: dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)

Download datasheets (PDF)

H 460 Linde Specification for Europe (EN)

Linde H 460 overview

Drive

Performance

The combination of a high power, low speed – high torque engine, matched with an electrically controlled 4-speed transmission, together with a multi-pump hydraulic system, manage the efficient use of energy, with maximised speed of operation while reducing the wear on hydraulic components.

Handling

Comfort

The cabin is equipped to provide the operator with a low-stress and spacious working environment. It is designed with comfortable and intuitive ergonomics, which are vital in creating the optimized working conditions necessary for sustained high-performance operation.

Productivity

The forward central positioning of the operator's cabin optimizes visibility to the fork carriage for loading and unloading operations, through the mast when traveling, and also around the machine when working in confined operating areas. Combining operator comfort and component performance with intuitive ergonomics further enhances the ease of operation.

Performance

Reliability

The high performance of the Linde Forklift truck is matched by the robustness of its construction. The high quality, heavy duty drive line components are designed to ensure maximum performance and durability. Heavy-duty main structural elements provide stress relief over the load bearing areas, thus ensuring lifelong product integrity.

Safety

Neutral start interlock preventing unintentional in-gear starting. Drive system inhibitors prevent incorrect downshift and reverse direction operation when in motion. Master warning lamp, steering column mounted, indicates monitored system warning.
