H 220/1200 D Linde diesel forklift specs & dimensions (2010 - 2020)

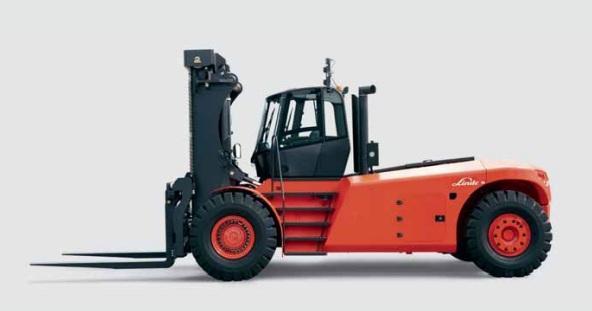

The Linde H 220/1200 D is a diesel forklift manufactured by Linde from 2010 to 2020. It has a weight of 34.93 tons and a nominal l…

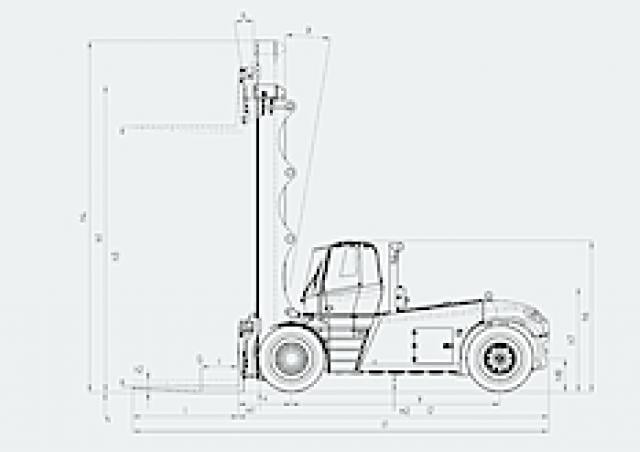

The Linde H 220/1200 D is a diesel forklift manufactured by Linde from 2010 to 2020. It has a weight of 34.93 tons and a nominal load at the center of gravity of 22 tons. The lifting height reaches up to 6.5 meters, with a center of gravity at 1200 mm. It has a maximum climbing ability of 25.4 percent and a lowering speed with load of 0.5 m/s. The total width of the forklift is 3098 mm, and it has a turning radius of 5.56 meters and a construction height of 3297 mm.
More technical details, like: dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
The hydrostatic drive is a well-balanced load-sensing hydraulic system, to ensure the optimized performance of the power unit. The combination of the drive system ensures that the machine is both powerful and economical. Speed control during all speed and lift modes of operation is precise.
Productivity
The powerful performance of the load-sensing hydraulic system with the power unit ensures that the handling of the truck is precise and responsive, allowing the operator confidence in the maneuverability of the counterbalanced truck. In combination with the hydrostatic drive system, it provides a high level of productivity, enabling the operator to meet the operating requirements efficiently. Integrated control and monitoring of the truck operations help to optimize uptime, thus facilitating increased operational control with low overall lifetime costs.
Performance
Reliability
The proven reputation of Linde's counterbalanced forklift trucks for strength, reliability and high performance is based on the high-grade materials used and the systematic approach to providing long service in arduous applications. The mast and the lifting device have been thoroughly tested for endurance and security in operation to ensure long operational life.
Cabin & Equipment
Safety
The driver is optimally located to ensure maximum visibility in all directions, enhancing the all-round view. The elevated position of the cab provides an unobstructed view to maximize the driver's ability to see the working area and load. The vibration-free mount of the cab ensures a comfortable ride, supported by the full-suspension operator's seat. The cab is easy to enter from the front, by rear and sides.
