Konecranes SMV 6 ECC 80
- Nominal load at COG:
- 8 t
- Centre of gravity:
- 1200 mm
- Standard tyres:
- 4x2
- Transmission type:
- W

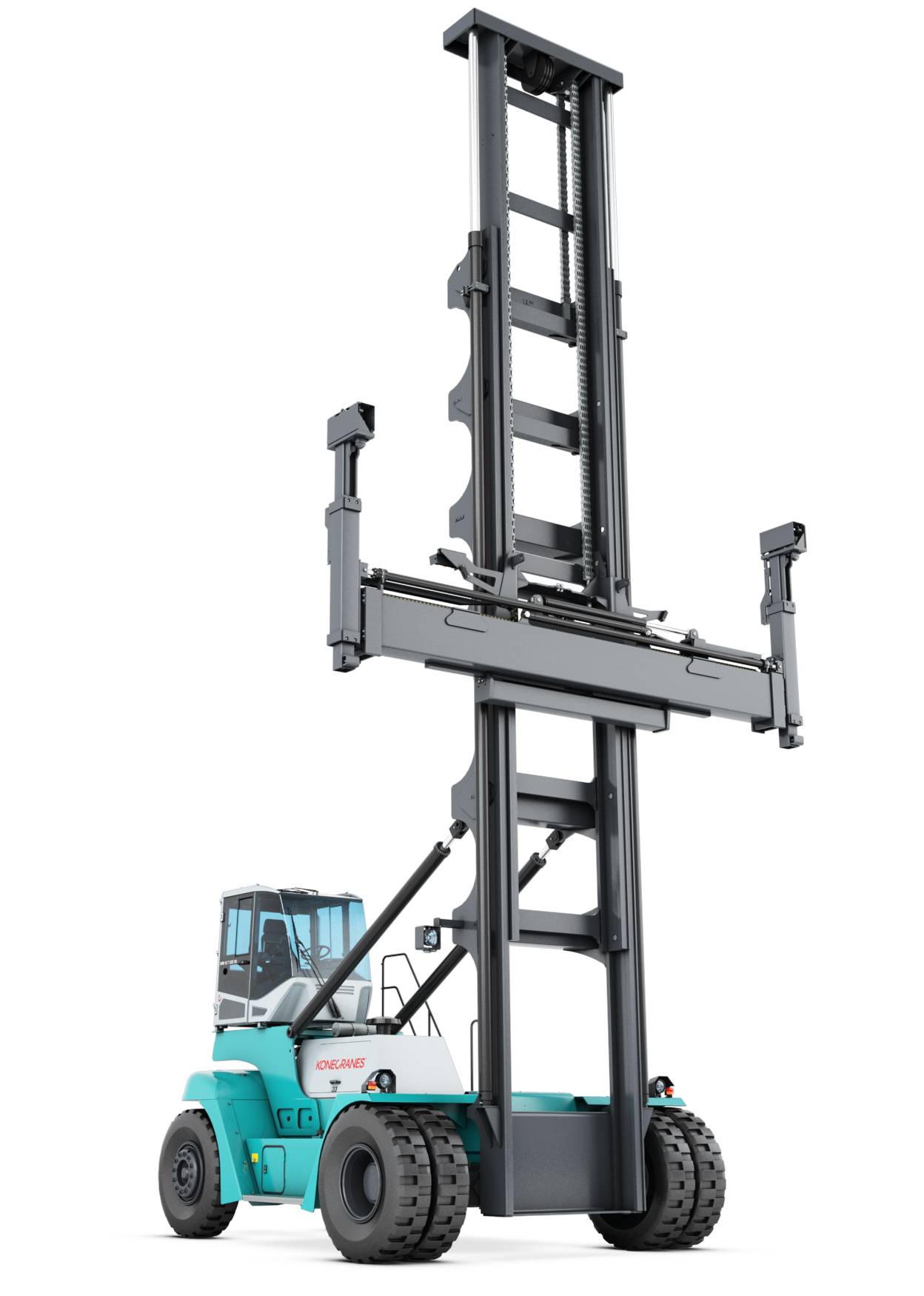

SMV 6 ECC 80 Konecranes diesel forklift specs & dimensions (2013 - 2019)
.jpg)
Technical specs - SMV 6 ECC 80 Konecranes
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Nominal load at COG
- 8 t
- Centre of gravity
- 1200 mm
- Standard tyres
- 4x2
- Transmission type
- W
- Weight
- 29.1 t
- Construction height
- 3780 mm
- Turning radius
- 5.6 m
- Lifting height
- 16 m
- Travel speed with / without load
- 25 km/h
- Hoisting with / without load
- 0.45/0.52 m/s
- Lowering with load
- 0.58/0.55 m/s
- max. climbing ability
- 26 %
- Model series
- ECC
- Engine manuf.
- Volvo
- Engine type
- TAD871VE
- Engine power
- 185 kW
- Displacement
- 7.7 l
- Revolutions at max torque
- 2200 rpm
- Max. torque
- 1160 Nm
- No. of cylinders
- 6
- Emission level
- IV
More technical details, like: total width, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.
L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
