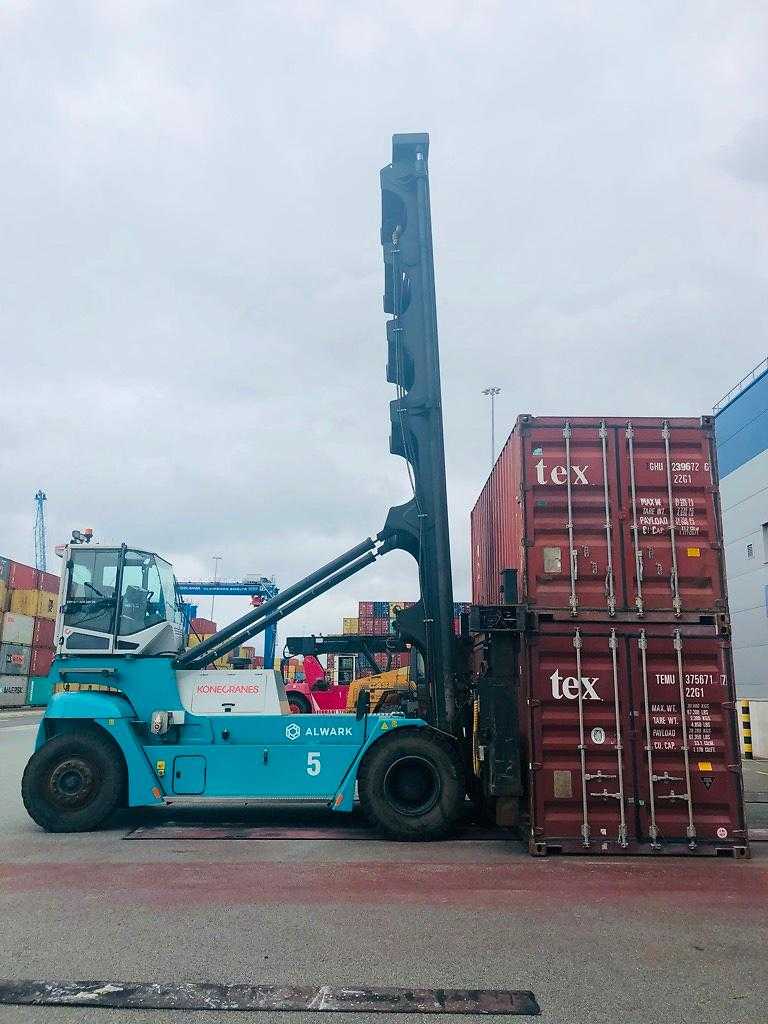

SMV 6/7 ECC 100 DS Konecranes diesel forklift specs & dimensions (2014 - 2019)

The Konecranes SMV 6/7 ECC 100 DS is a diesel forklift manufactured by Konecranes from 2014 to 2019. It has a weight of 39.2 tons …

The Konecranes SMV 6/7 ECC 100 DS is a diesel forklift manufactured by Konecranes from 2014 to 2019. It has a weight of 39.2 tons and a nominal load at the center of gravity of 10 tons. The lifting height of this forklift is 19 meters, with a center of gravity at 1220 mm. It has a maximum climbing ability of 32 percent and a lowering speed of 0.6 meters per second with a load. The travel speed of this forklift is 25 km/h with or without a load. It has a turning radius of 6 meters and a construction height of 3965 mm.

Diesel Forklifts Konecranes SMV 6/7 ECC 100 DS

Technical specs - SMV 6/7 ECC 100 DS Konecranes

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
10 t
Centre of gravity
1220 mm
Standard tyres
4x2
Transmission type
W
Weight
39.2 t
Construction height
3965 mm
Turning radius
6 m
Lifting height
19 m
Travel speed with / without load
25 km/h
Hoisting with / without load
0.61/0.68 m/s
Lowering with load
0.6 m/s
max. climbing ability
32 %
Model series
ECC
Engine manuf.
Volvo
Engine type
TAD871VE
Engine power
185 kW
Displacement
7.7 l
Revolutions at max torque
2200 rpm
Max. torque
1160 Nm
No. of cylinders
6
Emission level
IV

More technical details, like: total width, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
