70D-9 Hyundai diesel forklift specs & dimensions (2019 - 2023)

The Hyundai 70D-9 is a diesel forklift machine manufactured since 2019. It has a weight of 10.474 tons and a nominal load capacity…

The Hyundai 70D-9 is a diesel forklift machine manufactured since 2019. It has a weight of 10.474 tons and a nominal load capacity of 7 tons at the center of gravity. The lifting height reaches up to 3.03 meters, with a center of gravity at 600 mm. It has a maximum climbing ability of 44.4 percent. The hoisting speed is 0.42 m/s with load and without load, while the lowering speed with load is 0.5 m/s. The total width of the forklift is 2088 mm, and it can travel at a speed of 33.6 km/h with or without load. The turning radius is 3.436 meters, and the construction height is 2515 mm.

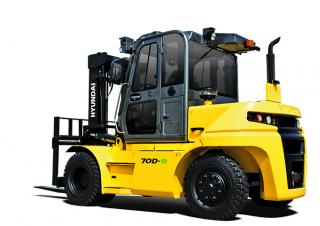

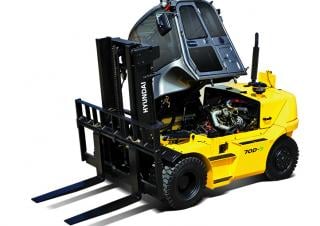

Diesel Forklifts Hyundai 70D-9
Diesel Forklifts Hyundai 70D-9
Diesel Forklifts Hyundai 70D-9
Diesel Forklifts Hyundai 70D-9

Visit Hyundai live at

Technical specs - 70D-9 Hyundai

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
7 t
Centre of gravity
600 mm
Standard tyres
P 4x/2
Weight
10.47 t
Total width
2088 mm
Construction height
2515 mm
Turning radius
3.44 m
Lifting height
3.03 m
Travel speed with / without load
33.6 km/h
Hoisting with / without load
0.42/0.46 m/s
Lowering with load
0.5/0.45 m/s
max. climbing ability
44.4 %
Model series
9
Engine manuf.
Cummins
Engine type
QSF3.8
Engine power
75 kW
Displacement
3.726 l
Revolutions at max torque
1600 rpm
No. of cylinders
4

More technical details, like: transmission type, dimension lxwxh, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
