The Hyundai 45 DS 7 E diesel forklift, manufactured from 2008 to 2019, has a weight of 6.88 tons and a nominal load at the center …

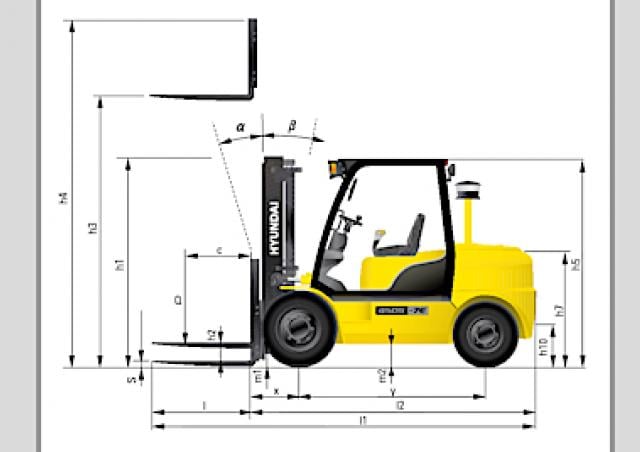

The Hyundai 45 DS 7 E diesel forklift, manufactured from 2008 to 2019, has a weight of 6.88 tons and a nominal load at the center of gravity of 4.5 tons. It can lift loads up to a height of 4 meters with a center of gravity at 600 mm. With a maximum climbing ability of 31.8%, it has a total width of 1776 mm. The forklift can travel at a speed of 26.1 km/h with or without a load and has a turning radius of 2.89 meters. Its construction height is 2240 mm.
More technical details, like: dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
The six cylinders turbo-charged engine is built for power, reliability and economy. This engine meets EPA tier III and EU stage IIIA emission regulation.
Wet Disc Brake System
Wet disc brakes improve the brake performance and make your service intervals longer. Enclosed brakes are protected against dust and water.
Adjustable Steering Wheel
Steering wheel with horn button can be adjusted by a lever on the right-hand side for the most comfortable operator position.
Ergonomically Positioned Pedals
Based on human engineering, the accelerator, brake and inching pedals are optimally positioned for operator's convenience. Easy to remove cleanable rubber floor mat.
Ground Clearance
The engine and transmission are assembled horizontally and positioned high in the frame to protect valuable components during operations on rugged surface.
Performance
Fast and stable performance
Being able to quickly raise and lower the mast, as well as tilting forward and backward, the truck provides you the best operational conditions during loading/unloading operations. When the truck is fully loaded, mast lowering speed is carefully controlled to ensure safety by the down control valve.
Increased mast tilting angle
Utilizing the mast tilting angle of 8 degrees forward and 10 degrees backward gives the operator a safe and rapid platform for loading and unloading jobs.
Faster Travel Speed & Grade-ability
The powerful high-output engine provides greater acceleration, better grade-ability and faster travel speed on any tough terrain or slope.
OPSS (Operator Presence Sensing System)
Mast tilting, lifting and lowering operation is not possible when the operator is not seated in normal position. (Option)
Safety
Full-floating headguard
Anti-vibration rubbers, installed between the cabin structure and truck frame, reduce vibrations and noise while driving. This reduces operator’s fatigue and increases safety.
Expansion bellows
The expansion bellows absorb vibration and reduce noise generated from the exhaust gas system to extend the life span.
Heavy duty single unit frame
Heavy duty single unit type frame, designed on the basis of accurate structural analysis, guarantees durability and safety.
