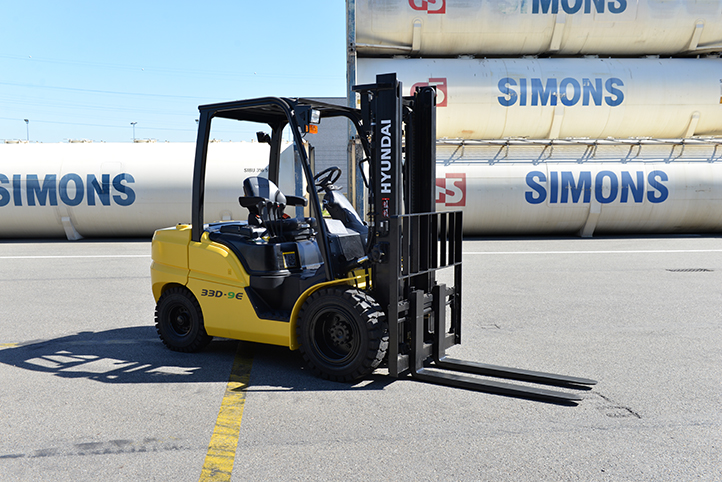

33D-9E Hyundai diesel forklift specs & dimensions (2019 - 2023)

The Hyundai 33D-9E is a diesel forklift manufactured since 2019. It has a weight of 4.561 tons and a nominal load at the center of…

The Hyundai 33D-9E is a diesel forklift manufactured since 2019. It has a weight of 4.561 tons and a nominal load at the center of gravity of 3.3 tons. The lifting height reaches up to 3.305 meters, with a center of gravity at 500 mm. It has a maximum climbing ability of 29 percent. The total width of the forklift is 1228 mm, and it can travel at a speed of 19.9 km/h with or without load. The turning radius is 2.463 meters, and the construction height is 2260 mm.

Diesel Forklifts Hyundai 33D-9E

Visit Hyundai live at

Technical specs - 33D-9E Hyundai

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
3.3 t
Centre of gravity
500 mm
Standard tyres
P 2x/2
Weight
4.561 t
Total width
1228 mm
Construction height
2260 mm
Turning radius
2.463 m
Lifting height
3.305 m
Travel speed with / without load
19.9 km/h
Hoisting with / without load
0.46/0.53 m/s
Lowering with load
0.5/0.45 m/s
max. climbing ability
29 %
Model series
9
Engine manuf.
Kubota
Engine type
V3307
Engine power
50 kW

More technical details, like: transmission type, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)

Download datasheets (PDF)
