33 D 7 E Hyundai diesel forklift specs & dimensions (2008 - 2019)
The Hyundai 33 D 7 E diesel forklift, manufactured from 2008 to 2019, weighs 4.823 tons. It has a nominal load capacity of 3.2 ton…

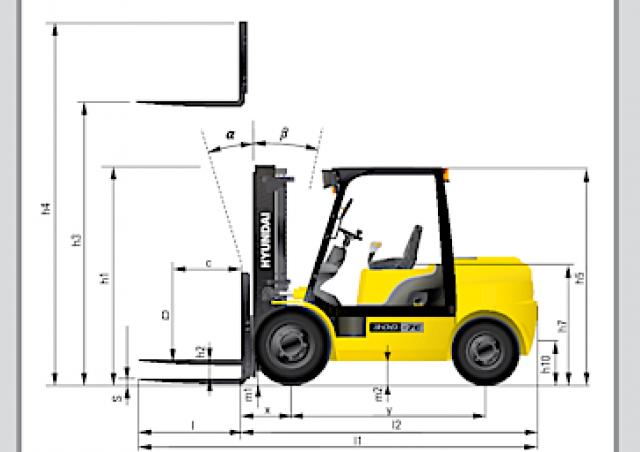

The Hyundai 33 D 7 E diesel forklift, manufactured from 2008 to 2019, weighs 4.823 tons. It has a nominal load capacity of 3.2 tons at the center of gravity, and can lift loads up to a height of 4.2 meters. The center of gravity is located at 500 mm. With a maximum climbing ability of 27.6 percent, it can navigate inclines with ease. The forklift has a total width of 1230 mm and a turning radius of 2.455 meters, allowing for maneuverability in tight spaces. Its construction height is 2180 mm.
More technical details, like: dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
Wet disc brakes improve the brake performance and make your service intervals longer. Enclosed brakes are protected against dust and water.
Adjustable steering wheel
Steering wheel with horn button can be adjusted by a lever on the right-hand side for the most comfortable operator position.
Easy and safe shift lever
A single lever on the left side of the steering column gives the operator fast and easy control of travel direction. The engine can only be started in case of neutral position of this lever.
Highly durable split type drive axle
Powershift transmission provides you with fast and quiet travel speed under all heavy load conditions, so boosting your work efficiency.
Performance
Fast and stable performance
Being able to quickly raise and lower the mast, as well as tilting forward and backward, the truck provides you the best operational conditions during loading/unloading operations. When the truck is fully loaded, mast lowering speed is carefully controlled to ensure safety by the down control valve.
Increased mast tilting angle
Utilizing the mast tilting angle of 6 degrees forward and 10 degrees backward gives the operator a safe and rapid platform for loading and unloading jobs.
OPSS (Operator Presence Sensing System)
Mast tilting, lifting and lowering operation is not possible when the operator is not seated in normal position. (Option)
Safety
Full-floating overhead guard
Anti-vibration rubbers, installed between the guard and truck frame, reduce the source of vibration and noise while driving. This reduces operator’s fatigue and increases safety.
Expansion bellows
The expansion bellows absorbs vibration and reduces noise generated from the exhaust gas to extend the life span.
Heavy duty single unit frame
Heavy duty single unit type frame, designed on the basis of accurate structural analysis, guarantees durability and safety.
Ground clearance
The engine and transmission are assembled horizontally and positioned high in the frame to protect valuable components during operations on rugged surface.
