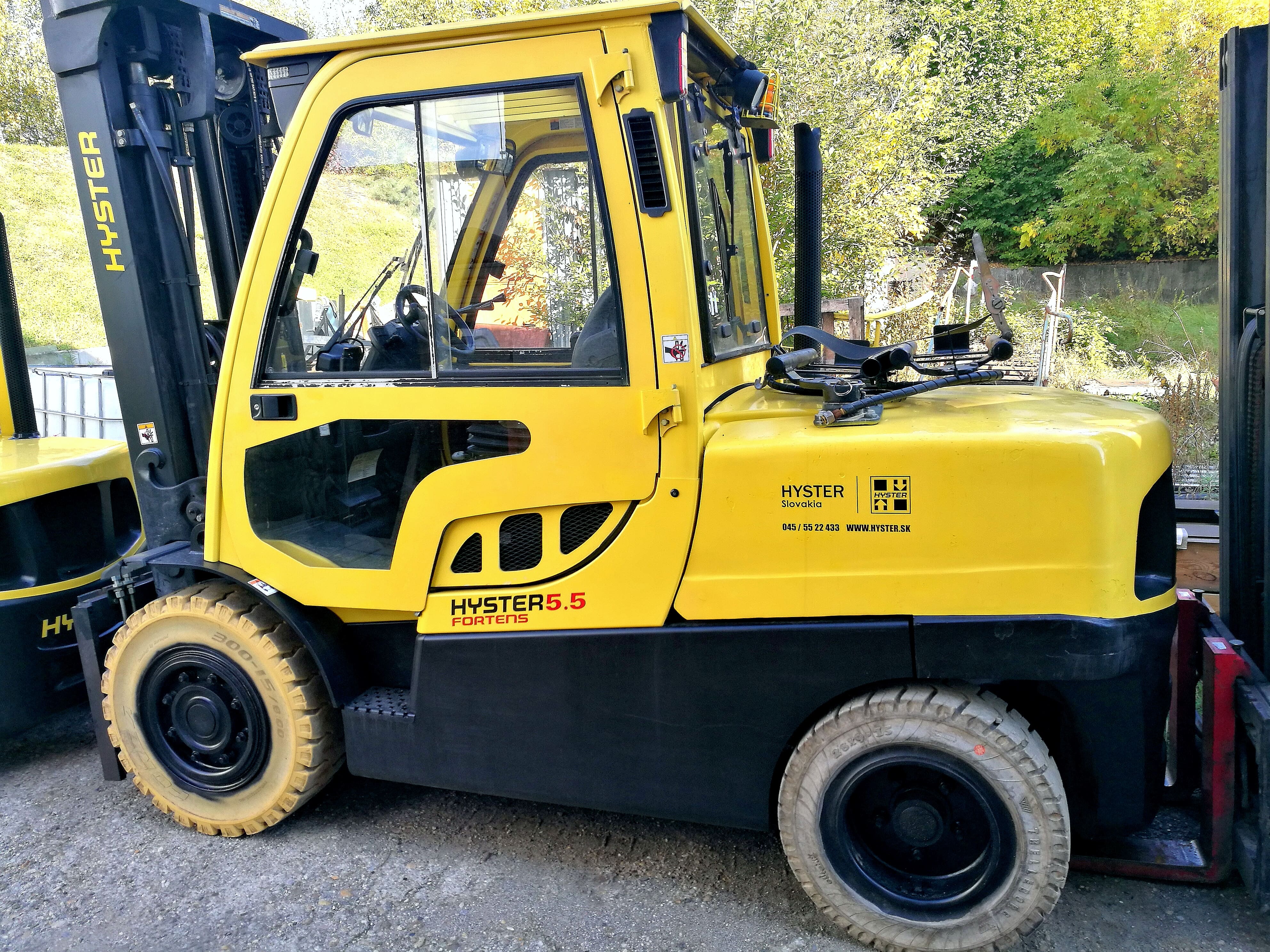

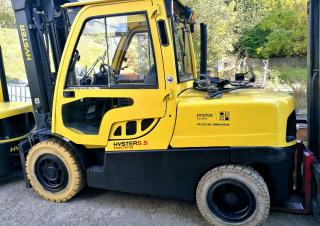

H5.5FT Hyster diesel forklift specs & dimensions (2005 - 2019)
Technical specs - H5.5FT Hyster
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Nominal load at COG
- 5.5 t
- Centre of gravity
- 600 mm
- Standard tyres
- SE 2x/2
- Transmission type
- W
- Weight
- 7.808 t
- Total width
- 1450 mm
- Construction height
- 2300 mm
- Turning radius
- 2.915 m
- Lifting height
- 4.145 m
- Travel speed with / without load
- 18.1/18.5 km/h
- Hoisting with / without load
- 0.48/0.49 m/s
- Lowering with load
- 0.51/0.42 m/s
- max. climbing ability
- 20.1 %
- Model series
- H
- Engine manuf.
- Cummins
- Engine type
- QSB3.3
- Engine power
- 60 kW
More technical details, like: dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
