H20XMS 9 Hyster diesel forklift specs & dimensions (2016 - 2019)

The Hyster H20XMS 9 is a diesel forklift manufactured by Hyster from 2016 to 2019. It has a weight of 30.456 tons and a nominal lo…

The Hyster H20XMS 9 is a diesel forklift manufactured by Hyster from 2016 to 2019. It has a weight of 30.456 tons and a nominal load at the center of gravity of 20 tons. The lifting height reaches up to 4.55 meters, with a center of gravity at 900 mm. It has a maximum climbing ability of 34 percent. The lowering speed with load is 0.5 m/s. The total width of the forklift is 2923 mm, and it can travel at a speed of 25 km/h with or without load. The turning radius is 4.863 meters, and the construction height is 3372 mm.

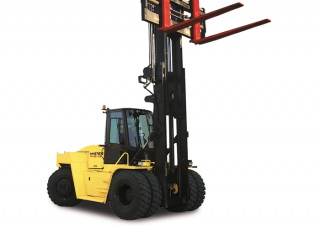

Diesel Forklifts Hyster H20XMS 9

Technical specs - H20XMS 9 Hyster

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
20 t
Centre of gravity
900 mm
Standard tyres
L 4x/2
Transmission type
W
Weight
30.456 t
Total width
2923 mm
Construction height
3372 mm
Turning radius
4.863 m
Lifting height
4.55 m
Travel speed with / without load
25 km/h
Hoisting with / without load
0.25/0.28 m/s
Lowering with load
0.5 m/s
max. climbing ability
34 %
Model series
H
Engine manuf.
Cummins
Engine type
QSB6.7
Engine power
168 kW
Displacement
6.7 l
Revolutions at max torque
1800 rpm
Emission level
IV

More technical details, like: dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
