H1.8FT Hyster diesel forklift specs & dimensions (2005 - 2021)

The Hyster H1.8FT is a diesel forklift manufactured since 2005. It has a weight of 3.134 tons and a nominal load at the center of …

The Hyster H1.8FT is a diesel forklift manufactured since 2005. It has a weight of 3.134 tons and a nominal load at the center of gravity of 1.8 tons. The lifting height reaches up to 3.83 meters, with a center of gravity at 500 mm. It has a maximum climbing ability of 28.2 percent. The total width of the forklift is 1072 mm, and it has a turning radius of 1.955 meters. The construction height is 2149 mm.

Diesel Forklifts Hyster H1.8FT
Diesel Forklifts Hyster H1.8FT

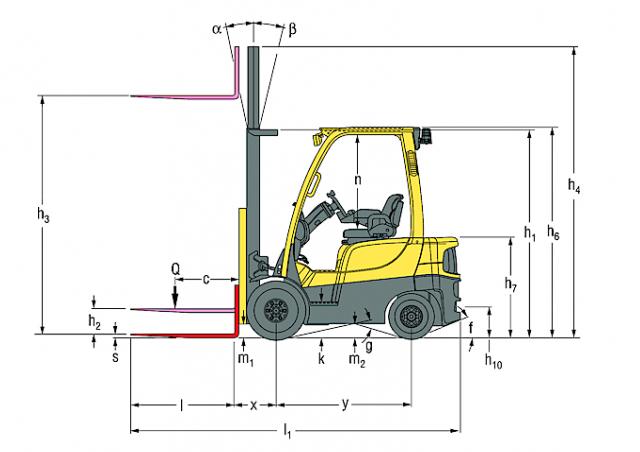

Hyster H1.8FT Dimensions and Size
Diesel Forklifts Hyster H1.8FT
Diesel Forklifts Hyster H1.8FT
Hyster H1.8FT Dimensions and Size

Technical specs - H1.8FT Hyster

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
1.8 t
Centre of gravity
500 mm
Standard tyres
SE2x/2
Transmission type
W
Weight
3.134 t
Total width
1072 mm
Construction height
2149 mm
Turning radius
1.955 m
Lifting height
3.83 m
Travel speed with / without load
20.5/20.9 km/h
Hoisting with / without load
0.63/0.62 m/s
Lowering with load
0.51/0.47 m/s
max. climbing ability
28.2 %
Model series
H
Engine manuf.
Yanmar
Engine type
4TME92
Engine power
29.1 kW
Displacement
2.659 l
Revolutions at max torque
2400 rpm
Max. torque
143/1400 Nm
No. of cylinders
4
Emission level
III B

More technical details, like: dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)

Download datasheets (PDF)

Hyster H1.8FT overview

Handling

Weights

Weights (line 2.1) are based on the following specifications: Complete truck with 3 330 mm 2-stage limited free lift mast, standard carriage and 1 000 mm forks with e-hydraulics, overhead guard and standard pneumatic shaped solid drive and steer tyres.
