CPCD20T8-S4S EP diesel forklift specs & dimensions (2024 - 2026)

Nominal load at COG: 2t – Centre of gravity: 500mm – Standard tyres: F: 7.00-12-12PR / R: 6.00-9-10PR – Weight: 3.58t – Total widt…

Nominal load at COG: 2t – Centre of gravity: 500mm – Standard tyres: F: 7.00-12-12PR / R: 6.00-9-10PR – Weight: 3.58t – Total width: 1150mm – Construction height: 2130mm

EP is the manufacturer of the CPCD20T8-S4S diesel forklift. The production years for this model are (2024 - 2026). Find here detailed specs for CPCD20T8-S4S diesel powered lift truck - in a form of table chart below and downloadable datasheet. Explore also the other forklift models produced by EP.

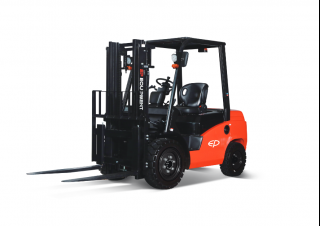

Diesel Forklifts EP CPCD20T8-S4S
Diesel Forklifts EP CPCD20T8-S4S
Diesel Forklifts EP CPCD20T8-S4S
Diesel Forklifts EP CPCD20T8-S4S
Diesel Forklifts EP CPCD20T8-S4S
Diesel Forklifts EP CPCD20T8-S4S

Technical specs - CPCD20T8-S4S EP

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
2 t
Centre of gravity
500 mm
Standard tyres
F: 7.00-12-12PR / R: 6.00-9-10PR
Weight
3.58 t
Total width
1150 mm
Construction height
2130 mm
Turning radius
2.17 m
Lifting height
3 m
Travel speed with / without load
20 km/h
Hoisting with / without load
0.45 m/s
Lowering with load
0.45 m/s
max. climbing ability
20 %
Model series
CPCD
Engine manuf.
Mitsubishi
Engine type
S4S-DPEU2
Engine power
35.3 kW
Displacement
3.33 l
Revolutions at max torque
1700 rpm
Max. torque
177 Nm
No. of cylinders
4
Cylinder bore x stroke
94x120 mm

More technical details, like: transmission type, dimension lxwxh, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
