Doosan D35C-5
- Nominal load at COG:
- 3.5 t
- Centre of gravity:
- 500 mm
- Transmission type:
- W
- Total width:
- 1255 mm

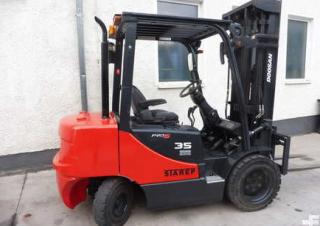

D35C-5 Doosan diesel forklift specs & dimensions (2017 - 2021)
Technical specs - D35C-5 Doosan
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Nominal load at COG
- 3.5 t
- Centre of gravity
- 500 mm
- Transmission type
- W
- Total width
- 1255 mm
- Construction height
- 2183 mm
- Turning radius
- 2.42 m
- Travel speed with / without load
- 17 km/h
- Hoisting with / without load
- 0.51 m/s
- Model series
- 5
- Engine manuf.
- Yanmar
- Engine type
- 4TNE94L
- Engine power
- 35.3 kW
- Displacement
- 3.054 l
- Revolutions at max torque
- 1500 rpm
- Max. torque
- 167 Nm
- Emission level
- 3A
More technical details, like: standard tyres, weight, lifting height, lowering with load, max. climbing ability, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
