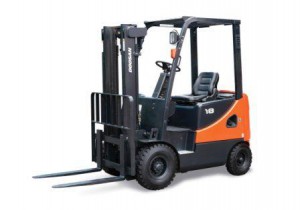

D18S-5 Doosan diesel forklift specs & dimensions (2017 - 2021)

The Doosan D18S-5 is a diesel forklift manufactured by Doosan from 2017 to 2021. It has a nominal load capacity of 1.75 tons at th…

The Doosan D18S-5 is a diesel forklift manufactured by Doosan from 2017 to 2021. It has a nominal load capacity of 1.75 tons at the center of gravity, which is located 500mm from the ground. The hoisting speed is 0.6m/s, whether with or without a load. The forklift has a total width of 1070mm and can travel at a speed of 19km/h with or without a load. It has a turning radius of 2.022m and a construction height of 2170mm.

Diesel Forklifts Doosan D18S-5
Diesel Forklifts Doosan D18S-5
Diesel Forklifts Doosan D18S-5
Diesel Forklifts Doosan D18S-5
Diesel Forklifts Doosan D18S-5
Diesel Forklifts Doosan D18S-5
Diesel Forklifts Doosan D18S-5
Diesel Forklifts Doosan D18S-5

Technical specs - D18S-5 Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
1.75 t
Centre of gravity
500 mm
Transmission type
W
Total width
1070 mm
Construction height
2170 mm
Turning radius
2.022 m
Travel speed with / without load
19/20 km/h
Hoisting with / without load
0.6/0.65 m/s
Model series
5
Engine manuf.
Kubota
Engine type
V2403
Engine power
34.1 kW
Displacement
2.434 l
Revolutions at max torque
1600 rpm
Max. torque
155.9 Nm
Emission level
3A

More technical details, like: standard tyres, weight, lifting height, lowering with load, max. climbing ability, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
