CD90S-7 Crown diesel forklift specs & dimensions (2022 - 2026)

The Crown CD90S-7 is a diesel forklift manufactured by Crown since 2022. It has a weight of 12.275 tons and a nominal load capacit…

The Crown CD90S-7 is a diesel forklift manufactured by Crown since 2022. It has a weight of 12.275 tons and a nominal load capacity of 9 tons at the center of gravity. The forklift can lift loads up to a height of 3.1 meters, with a center of gravity at 600 mm. It has a maximum climbing ability of 28 percent. The hoisting speed is 0 m/s with or without a load, while the lowering speed with a load is 0.5 m/s. The forklift has a total width of 2230 mm and can travel at a speed of 30 km/h with or without a load. It has a turning radius of 3.679 meters and a construction height of 2835 mm.

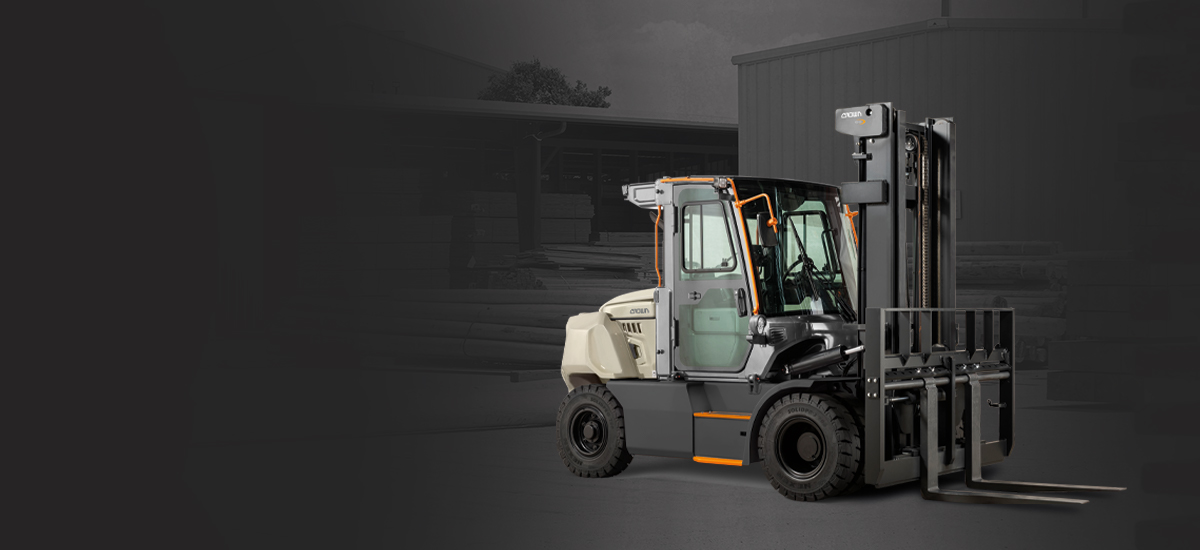

Diesel Forklifts Crown CD90S-7
Diesel Forklifts Crown CD90S-7
Diesel Forklifts Crown CD90S-7
Diesel Forklifts Crown CD90S-7

Technical specs - CD90S-7 Crown

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
9 t
Centre of gravity
600 mm
Standard tyres
Pneumatic 4x/2
Weight
12.275 t
Total width
2230 mm
Construction height
2835 mm
Turning radius
3.679 m
Lifting height
3.1 m
Travel speed with / without load
30.3/36.5 km/h
Hoisting with / without load
0.41/0.47 m/s
Lowering with load
0.5 m/s
max. climbing ability
28 %
Model series
CD
Engine manuf.
Doosan
Engine type
D34
Engine power
80.9 kW
Displacement
3.409 l
Revolutions at max torque
1600 rpm
Max. torque
276.6 Nm
No. of cylinders
4
Emission level
EPA Tier 4

More technical details, like: transmission type, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
