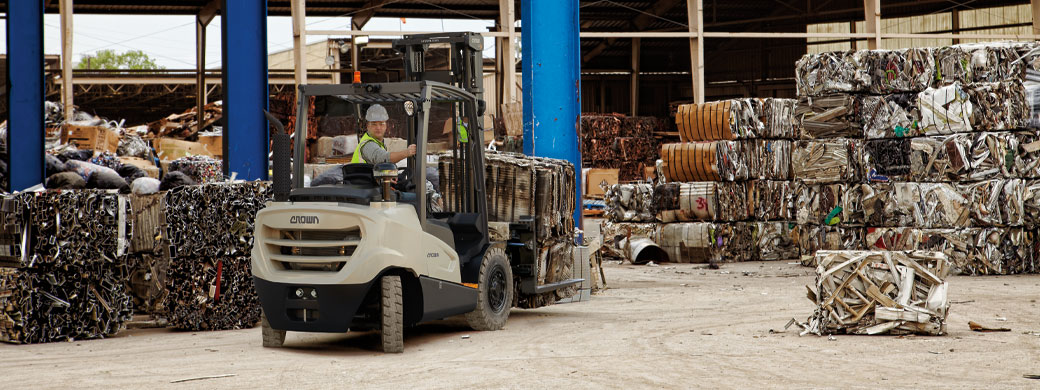

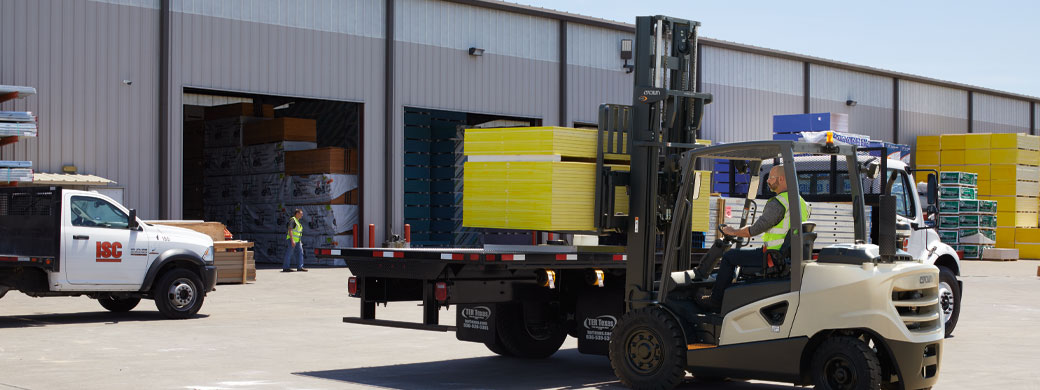

Crown CD55S-7
- Nominal load at COG:
- 5.5 t
- Centre of gravity:
- 600 mm
- Standard tyres:
- Pneumatic 2x/2
- Weight:
- 7.725 t
CD55S-7 Crown diesel forklift specs & dimensions (2022 - 2026)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Technical specs - CD55S-7 Crown
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Nominal load at COG
- 5.5 t
- Centre of gravity
- 600 mm
- Standard tyres
- Pneumatic 2x/2
- Weight
- 7.725 t
- Total width
- 1455 mm
- Construction height
- 2225 mm
- Turning radius
- 2.972 m
- Lifting height
- 3.05 m
- Travel speed with / without load
- 25.0/27.0 km/h
- Hoisting with / without load
- 0.52/0.60 m/s
- Lowering with load
- 0.45 m/s
- max. climbing ability
- 30.1 %
- Model series
- CD
- Engine manuf.
- Doosan
- Engine type
- D34NAP
- Engine power
- 55 kW
- Displacement
- 3.409 l
- Revolutions at max torque
- 1400 rpm
- Max. torque
- 330 Nm
- No. of cylinders
- 4
- Emission level
- EPA Tier 4
More technical details, like: transmission type, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.
L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
