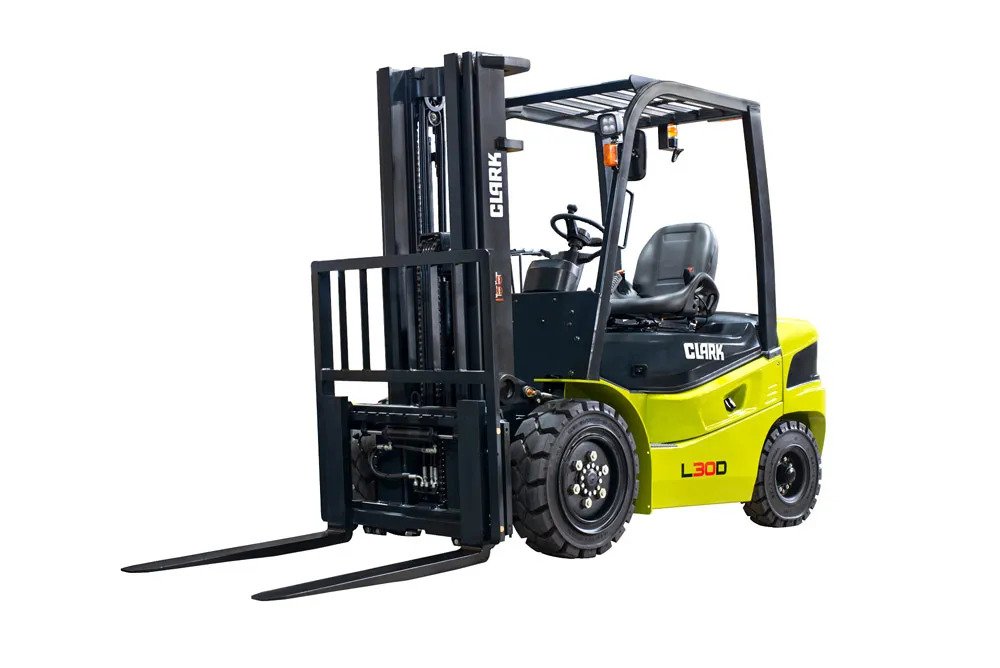

L33D Clark diesel forklift specs & dimensions (2022 - 2026)

The Clark L33D is a diesel forklift manufactured since 2022. It has a weight of 4.24 tons and a nominal load at the center of grav…

The Clark L33D is a diesel forklift manufactured since 2022. It has a weight of 4.24 tons and a nominal load at the center of gravity of 3.3 tons. The lifting height reaches up to 3.165 meters, with a center of gravity at 500 mm. It has a maximum climbing ability of 26.2 percent. The lowering speed with load is 0.5 m/s. The total width of the forklift is 1907 mm, and it has a turning radius of 2.48 meters. The construction height is 2180 mm.

Technical specs - L33D Clark

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
3.3 t
Centre of gravity
500 mm
Standard tyres
28x9x15-14PR/6.50X10-12PR
Weight
4.24 t
Total width
1907 mm
Construction height
2180 mm
Turning radius
2.48 m
Lifting height
3.165 m
Travel speed with / without load
17.1/19.1 km/h
Hoisting with / without load
0.47/0.5 m/s
Lowering with load
0.5 m/s
max. climbing ability
26.2 %
Model series
L
Engine manuf.
Xinchai
Engine type
G3&J4
Engine power
36.8 kW
Displacement
2.672 l
Revolutions at max torque
2500 rpm
No. of cylinders
4

More technical details, like: transmission type, dimension lxwxh, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)

Download datasheets (PDF)

Clark L33D overview

Clark L33D features overview

The Reliable Clark Forklift for Everyday Operations

The L-Series is a powerful but yet affordable truck series. CLARK has chosen reliable components what makes this truck series productive and easy to service at the same time. The L-Series can be used for a wide variety of indoor and outdoor applications including logistics, distribution and manufacturing. With excellent all-around visibility, a predictable behavior during the operation and the class leading CLARK masts, the L-Series is made for save and cost effective operations over a long service life.


Easy Maintenance

The diesel engine used on the L-Series offers a proven engine technology that makes the L-Series easy to service. No computer diagnostic systems required. An absence of electronic functionality improves reliability. Easily sourced components make replacing parts easy and improves serviceability.


Cost Effective Solution

The CLARK L-Series is affordable and offers benefits that provide cost advantages over the life of the truck. Proven engine, parts are cost-effective and are available worldwide. Other key components are also available in our extensive range of forklift parts and can be sourced quickly. Computerized diagnostic tools are not required. This reduces the cost of maintaining the forklift.


CLARK Mast Technology

With over 100 years of forklift design and manufacturing experience, CLARK knows what is most important in a forklift truck. The mast is one of the most important components of your forklift.The L-Series utilizes the same proven CLARK mast technology used across the CLARK range.Designed to be stronger than conventional flat-faced rails.Better resistance of side-to-side deflection with strong rail sections.Promotes longer life and improved stability with elevated loads.


Handling

Predictable Operation

The L-Series is designed for predictable operation with easy reach cowl mounted hand brake and levers. With its front and centre location, an operator can check their dashboard without distracting from safe operation. The ergonomic workplace offers the driver an intuitive operating concept with an excellent view of both load and forks. The optimal seat position gives the driver a good all-round view, which increases safety during load handling.
