CDC 60 Clark diesel forklift specs & dimensions (1997 - 2003)

The Clark CDC 60 is a diesel forklift manufactured by Clark from 1997 to 2003. It has a weight of 8.539 tons and a nominal load at…

The Clark CDC 60 is a diesel forklift manufactured by Clark from 1997 to 2003. It has a weight of 8.539 tons and a nominal load at the center of gravity of 6 tons. The center of gravity is located at 600 mm.

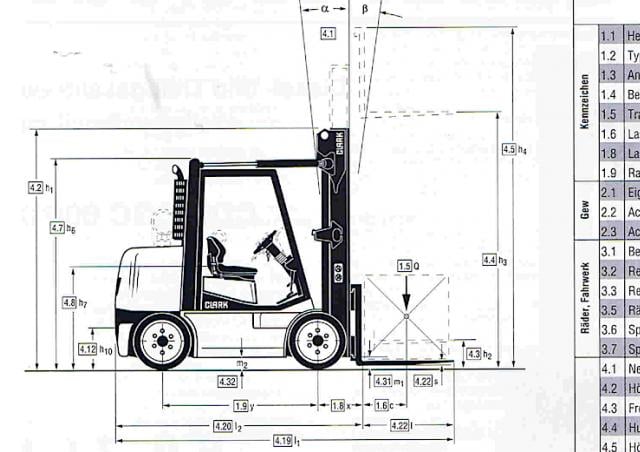

Clark CDC 60 Dimensions and Size

Technical specs - CDC 60 Clark

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
6 t
Centre of gravity
600 mm
Standard tyres
V 2x/2
Transmission type
W
Weight
8.539 t
Model series
CDC
Engine manuf.
Perkins
Engine type
1004.4
Engine power
63 kW

More technical details, like: total width, construction height, turning radius, lifting height, travel speed with / without load, hoisting with / without load, lowering with load, max. climbing ability, dimension lxwxh, displacement, revolutions at max torque, max. torque...

More technical details, like: total width, construction height, turning radius, lifting height, travel speed with / without load, hoisting with / without load, lowering with load, max. climbing ability, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)

Download datasheets (PDF)

Buy & Rent

Used Clark Diesel Forklifts for sale

LECTURA gathers most relevant deals from many sources about Diesel Forklifts.
Find current offers on often visited classified marketplaces presenting second hand Diesel Forklifts to buy in many countries.

Get in touch for more details:

Used Clark Diesel Forklifts for sale | Forklift-International
Go to the offers

Compare Clark CDC 60 with similar Diesel Forklifts

Clark CDC 60

Clark CDC 60

Nominal load at COG:
6 t
Centre of gravity:
600 mm
Standard tyres:
V 2x/2
Transmission type:
W
OM DI 50 C 500

OM DI 50 C 500

Nominal load at COG:
5 t
Centre of gravity:
600 mm
Standard tyres:
L 4
Transmission type:
W
Nissan DF 05 A 50 U

Nissan DF 05 A 50 U

Nominal load at COG:
5 t
Centre of gravity:
600 mm
Standard tyres:
L 4
Transmission type:
W
Heli CPCD 60 W

Heli CPCD 60 W

Nominal load at COG:
6 t
Centre of gravity:
600 mm
Standard tyres:
SE 4x/2
Lugli 70 C

Lugli 70 C

Nominal load at COG:
7 t
Centre of gravity:
600 mm
Standard tyres:
L 6
Transmission type:
HY
