M330H-DV Cesab diesel forklift specs & dimensions (2022 - 2026)

Name: Cesab M330H-DV Diesel Forklifts
Brand: Cesab

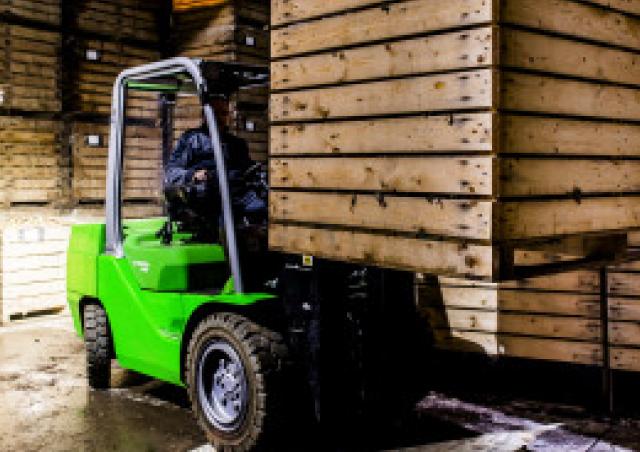

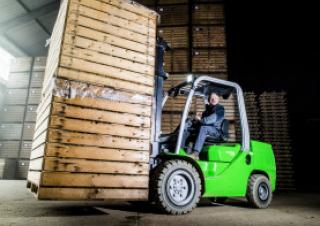

The Cesab M330H-DV is a diesel forklift manufactured since 2022. It has a nominal load capacity of 3 tons at the center of gravity…

The Cesab M330H-DV is a diesel forklift manufactured since 2022. It has a nominal load capacity of 3 tons at the center of gravity, with a lifting height of 2.97 meters. The center of gravity is positioned at 500 millimeters. The hoisting speed is 0 meters per second, both with and without a load. The travel speed is 19 kilometers per hour, again both with and without a load. The forklift has a turning radius of 2.43 meters.

M330H-DV

Years of manufacture: 2022—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - M330H-DV Cesab

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 3 t

Centre of gravity: 500 mm

Turning radius: 2.43 m

Lifting height: 2.97 m

Travel speed with / without load: 19.5/19.5 km/h

Hoisting with / without load: 0.5/0.53 m/s

Model series: E 300

Engine manuf.: N/A

Engine type: 1ZS (V)

Engine power: 41 kW

Displacement: 1.795 l

Revolutions at max torque: 1600 rpm

Max. torque: 200 Nm

No. of cylinders: 3

Emission level: Stage V

More technical details, like: standard tyres, transmission type, weight, total width, construction height, lowering with load, max. climbing ability, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)

Download datasheets (PDF)

M330H-DV Cesab Specification for Europe (EN)
