M320H-DV Cesab diesel forklift specs & dimensions (2022 - 2026)

The Cesab M320H-DV is a diesel forklift manufactured since 2022. It has a nominal load capacity of 2 tons at the center of gravity…

The Cesab M320H-DV is a diesel forklift manufactured since 2022. It has a nominal load capacity of 2 tons at the center of gravity, with a lifting height of 2.97 meters. The center of gravity is positioned at 500 millimeters. The hoisting speed is 0 meters per second, both with and without a load. The travel speed is 19 kilometers per hour, again both with and without a load. The forklift has a turning radius of 2.2 meters.

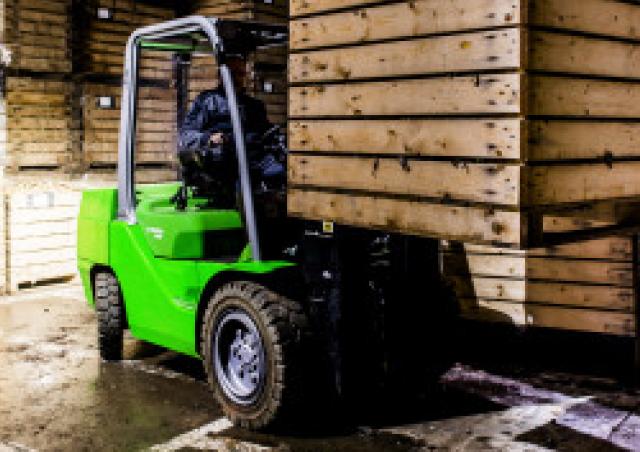

Diesel Forklifts Cesab M320H-DV
Diesel Forklifts Cesab M320H-DV
Diesel Forklifts Cesab M320H-DV
Diesel Forklifts Cesab M320H-DV

Technical specs - M320H-DV Cesab

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
2 t
Centre of gravity
500 mm
Turning radius
2.2 m
Lifting height
2.97 m
Travel speed with / without load
19/19 km/h
Hoisting with / without load
0.62/0.66 m/s
Model series
E 300
Engine manuf.
Toyota
Engine type
1ZS
Engine power
41 kW
Displacement
1.795 l
Revolutions at max torque
2200 rpm
Max. torque
200/1600 Nm
No. of cylinders
3
Emission level
V

More technical details, like: standard tyres, transmission type, weight, total width, construction height, lowering with load, max. climbing ability, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
