Cesab Drago 450
- Nominal load at COG:
- 4.5 t
- Centre of gravity:
- 500 mm
- Standard tyres:
- SE
- Transmission type:
- HY

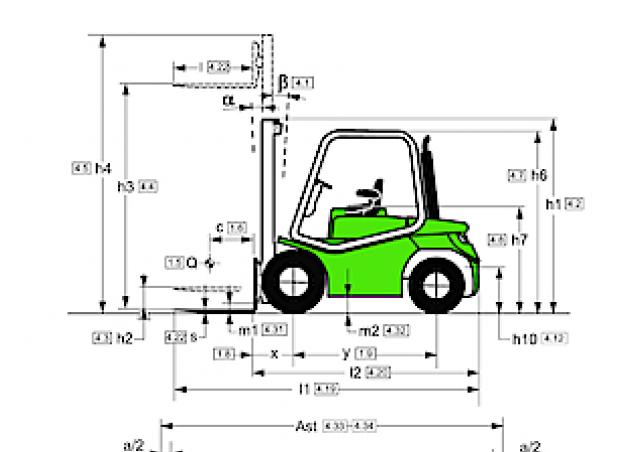

Drago 450 Cesab diesel forklift specs & dimensions (1998 - 2015)
Technical specs - Drago 450 Cesab
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Nominal load at COG
- 4.5 t
- Centre of gravity
- 500 mm
- Standard tyres
- SE
- Transmission type
- HY
- Weight
- 6.64 t
- Total width
- 1410 mm
- Construction height
- 2480 mm
- Turning radius
- 2.757 m
- Lifting height
- 3.2 m
- Travel speed with / without load
- 18/18 km/h
- Hoisting with / without load
- 0.46/0.55 m/s
- Lowering with load
- 0.6 m/s
- max. climbing ability
- 24 %
- Model series
- Drago
- Engine manuf.
- John Deere
- Engine type
- 4045D
- Engine power
- 56 kW
More technical details, like: dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
