Drago 200 Cesab diesel forklift specs & dimensions (2008 - 2026)

Name: Cesab Drago 200 Diesel Forklifts
Brand: Cesab

The Cesab Drago 200 is a diesel forklift manufactured by Cesab since 2008. It has a weight of 3.4 tons and a nominal load capacity…

The Cesab Drago 200 is a diesel forklift manufactured by Cesab since 2008. It has a weight of 3.4 tons and a nominal load capacity of 2 tons at the center of gravity. The forklift can lift loads up to a height of 3.2 meters, with a center of gravity at 500 mm. It has a maximum climbing ability of 27 percent and a lowering speed of 0.55 meters per second with a load. The total width of the forklift is 1098 mm, and it has a turning radius of 2.069 meters. The construction height of the forklift is 2120 mm.

Drago 200

Years of manufacture: 2008—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

See offers

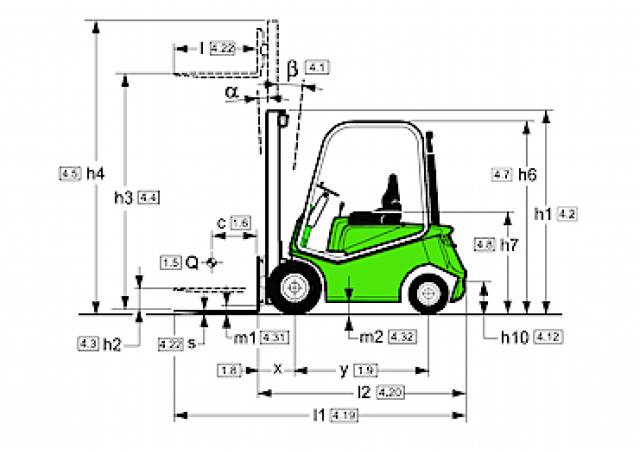

Technical specs - Drago 200 Cesab

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 2 t

Centre of gravity: 500 mm

Standard tyres: SE

Transmission type: HY

Weight: 3.4 t

Total width: 1098 mm

Construction height: 2120 mm

Turning radius: 2.069 m

Lifting height: 3.2 m

Travel speed with / without load: 17/18 km/h

Hoisting with / without load: 0.5/0.55 m/s

Lowering with load: 0.55 m/s

max. climbing ability: 27 %

Model series: Drago

Engine manuf.: Toyota

Engine type: 1 DZ-III

Engine power: 36 kW

More technical details, like: dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
