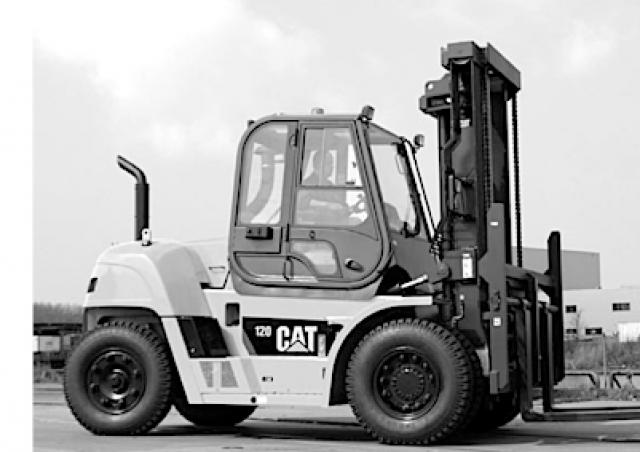

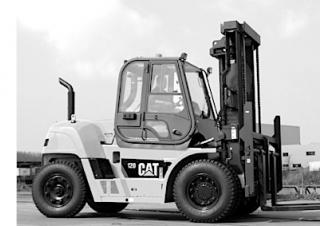

DP90N Caterpillar diesel forklift specs & dimensions (2010 - 2014)

Name: Caterpillar DP90N Diesel Forklifts
Brand: Caterpillar

The Caterpillar DP90N is a diesel forklift manufactured by Caterpillar from 2010 to 2014. It has a weight of 13.51 tons and a nomi…

The Caterpillar DP90N is a diesel forklift manufactured by Caterpillar from 2010 to 2014. It has a weight of 13.51 tons and a nominal load at the center of gravity of 9 tons. The forklift can lift loads up to a height of 4 meters and has a center of gravity at 600 mm. It has a maximum climbing ability of 39 percent and a total width of 2390 mm. The turning radius of the forklift is 3.93 meters and it has a construction height of 2845 mm.

DP90N

Years of manufacture: 2010—2014

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - DP90N Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 9 t

Centre of gravity: 600 mm

Standard tyres: 4x/2L

Transmission type: HY

Weight: 13.51 t

Total width: 2390 mm

Construction height: 2845 mm

Turning radius: 3.93 m

Lifting height: 4 m

Travel speed with / without load: 26/30 km/h

Hoisting with / without load: 0.44/0.46 m/s

Lowering with load: 0.44/0.4 m/s

max. climbing ability: 39 %

Model series: DP

Engine manuf.: Mitsubishi

Engine type: 6 M 60 TL

Engine power: 110 kW

More technical details, like: dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
