DP18N Caterpillar diesel forklift specs & dimensions (2005 - 2014)

Name: Caterpillar DP18N Diesel Forklifts
Brand: Caterpillar

The Caterpillar DP18N is a diesel forklift manufactured by Caterpillar from 2005 to 2014. It has a weight of 2.81 tons and a nomin…

The Caterpillar DP18N is a diesel forklift manufactured by Caterpillar from 2005 to 2014. It has a weight of 2.81 tons and a nominal load at the center of gravity of 1.75 tons. The forklift can lift loads up to a height of 3.29 meters and has a center of gravity at 500 millimeters. It has a maximum climbing ability of 28 percent and a total width of 1480 millimeters. The turning radius of the forklift is 1.98 meters and it has a construction height of 2145 millimeters.

DP18N

Years of manufacture: 2005—2014

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

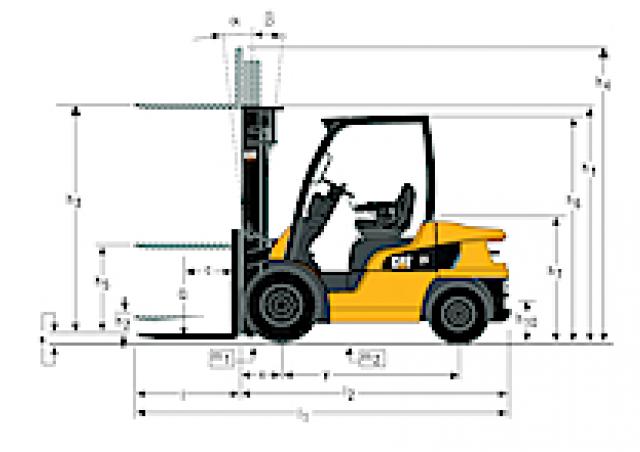

Technical specs - DP18N Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 1.75 t

Centre of gravity: 500 mm

Standard tyres: 2x/2SE

Transmission type: W

Weight: 2.81 t

Total width: 1480 mm

Construction height: 2145 mm

Turning radius: 1.98 m

Lifting height: 3.29 m

Travel speed with / without load: 19/19.5 km/h

Hoisting with / without load: 0.6/0.65 m/s

Lowering with load: 0.52/0.5 m/s

max. climbing ability: 28 %

Model series: DP

Engine manuf.: Mitsubishi

Engine type: S4Q2

Engine power: 29 kW

Displacement: 2.51 l

Revolutions at max torque: 1600 rpm

More technical details, like: dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
