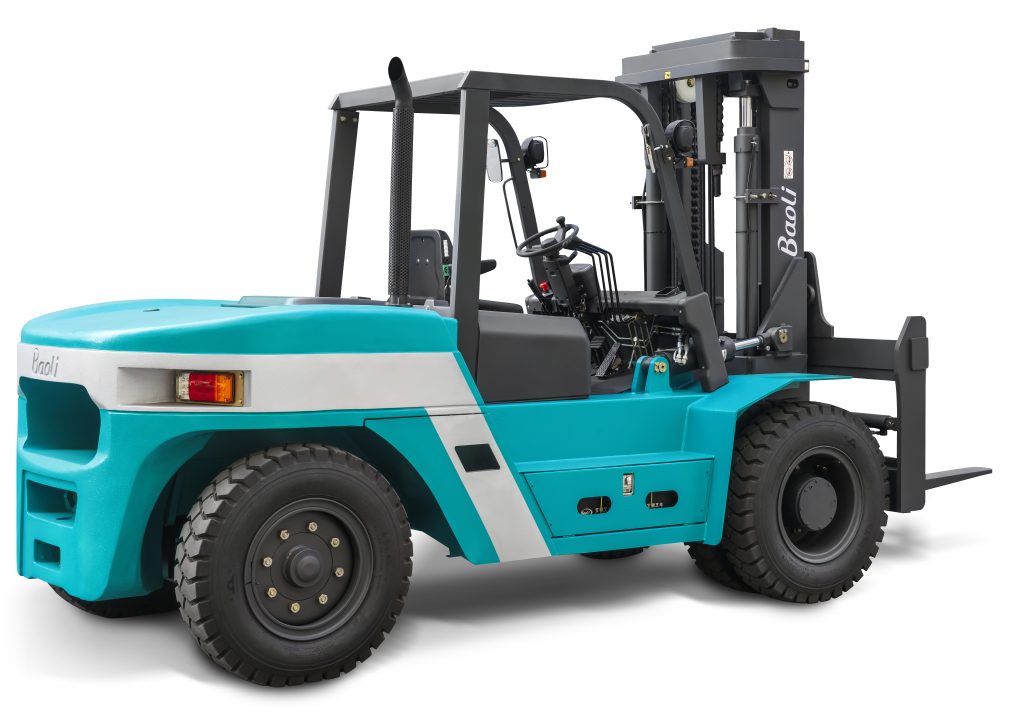

Baoli KBD 70 diesel forklift specs (2021 - 2025)

Name: Baoli KBD 70 Diesel Forklifts
Brand: Baoli

The Baoli KBD 70 is a diesel forklift manufactured by Baoli since 2021. It has a weight of 9.6 tons and a nominal load at the cent…

The Baoli KBD 70 is a diesel forklift manufactured by Baoli since 2021. It has a weight of 9.6 tons and a nominal load at the center of gravity of 7 tons. The lifting height reaches up to 3 meters, with a center of gravity at 600 mm. It has a maximum climbing ability of 20 percent. The hoisting speed, both with and without load, is 0 m/s, while the lowering speed with load is also 0 m/s. The total width of the forklift is 1995 mm, and it can travel at a speed of 22 km/h with or without load. The turning radius is 3.46 meters, and the construction height is 2445 mm.

KBD 70

Years of manufacture: 2021—2025

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
Events & News

Technical specs - KBD 70 Baoli

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 7 t

Centre of gravity: 600 mm

Transmission type: W

Weight: 9.6 t

Total width: 1995 mm

Construction height: 2445 mm

Turning radius: 3.46 m

Lifting height: 3 m

Travel speed with / without load: 22/27 km/h

Hoisting with / without load: 0.42/0.555 m/s

Lowering with load: 0.35/0.285 m/s

max. climbing ability: 20 %

Model series: KBD

Engine manuf.: Cummins

Engine type: QSB4.5

Engine power: 82 kW

More technical details, like: standard tyres, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
