Baoli KBD 50S diesel forklift specs (2021 - 2025)

Name: Baoli KBD 50S Diesel Forklifts
Brand: Baoli

The Baoli KBD 50S is a diesel forklift manufactured by Baoli since 2021. It has a weight of 7.34 tons and a nominal load capacity …

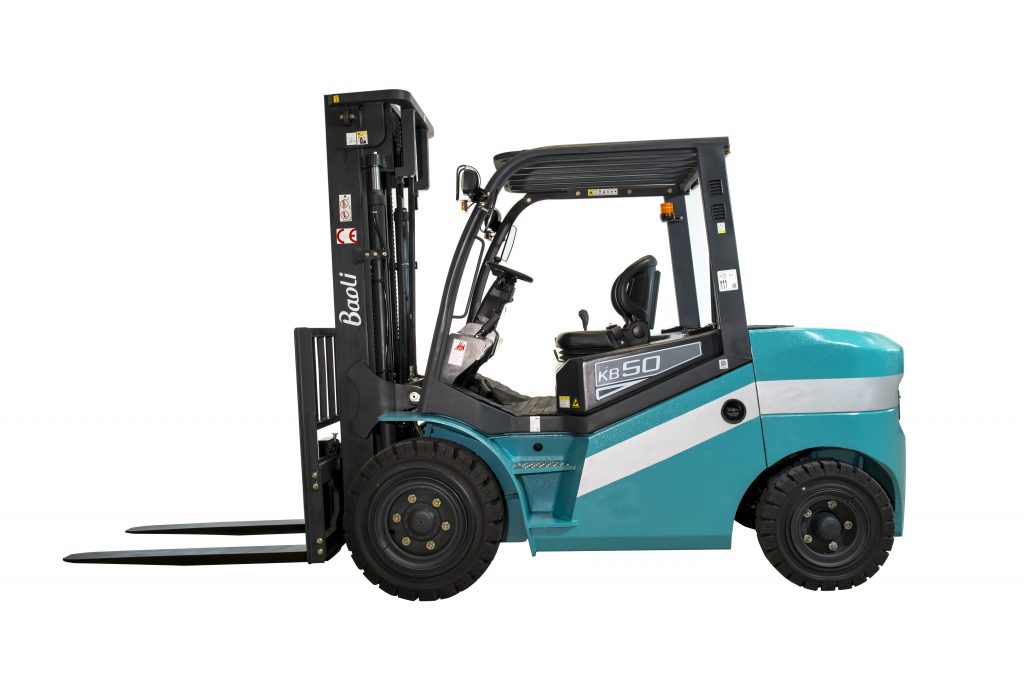

The Baoli KBD 50S is a diesel forklift manufactured by Baoli since 2021. It has a weight of 7.34 tons and a nominal load capacity of 5 tons at the center of gravity. The forklift can lift loads up to a height of 3 meters, with a center of gravity at 500mm. It has a maximum climbing ability of 20 percent. The hoisting and lowering speeds are both 0m/s when carrying a load. The total width of the forklift is 1485mm, and it can travel at a speed of 24km/h with or without a load. The turning radius is 2.83 meters, and the construction height is 2260mm.

KBD 50S

Years of manufacture: 2021—2025

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
Events & News

Technical specs - KBD 50S Baoli

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 5 t

Centre of gravity: 500 mm

Transmission type: W

Weight: 7.34 t

Total width: 1485 mm

Construction height: 2260 mm

Turning radius: 2.83 m

Lifting height: 3 m

Travel speed with / without load: 24/25 km/h

Hoisting with / without load: 0.44/0.53 m/s

Lowering with load: 0.42/0.29 m/s

max. climbing ability: 20 %

Model series: KBD

Engine manuf.: Deutz

Engine type: TCD2.9 L4

Engine power: 55.4 kW

Displacement: 2.9 l

No. of cylinders: 4

Emission level: Euro 5

More technical details, like: standard tyres, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
