Baoli KBD 50 diesel forklift specs (2021 - 2025)

Name: Baoli KBD 50 Diesel Forklifts
Brand: Baoli

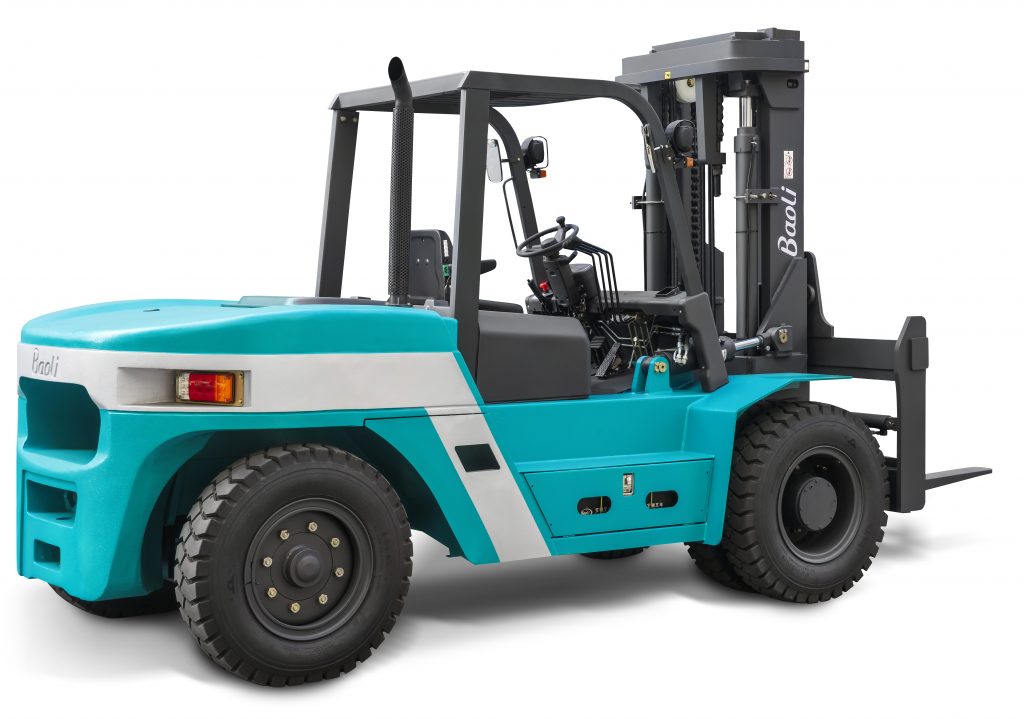

The Baoli KBD 50 is a diesel forklift manufactured since 2021. It has a weight of 8.815 tons and a nominal load at the center of g…

The Baoli KBD 50 is a diesel forklift manufactured since 2021. It has a weight of 8.815 tons and a nominal load at the center of gravity of 5 tons. The lifting height reaches up to 3 meters, with a center of gravity at 600 mm. It has a maximum climbing ability of 20 percent. The hoisting speed, both with and without load, is 0 m/s, while the lowering speed with load is also 0 m/s. The total width of the forklift is 1995 mm, and it can travel at a speed of 24 km/h with or without load. The turning radius is 3.34 meters, and the construction height is 2445 mm.

KBD 50

Years of manufacture: 2021—2025

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
Events & News

Technical specs - KBD 50 Baoli

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 5 t

Centre of gravity: 600 mm

Transmission type: W

Weight: 8.815 t

Total width: 1995 mm

Construction height: 2445 mm

Turning radius: 3.34 m

Lifting height: 3 m

Travel speed with / without load: 24/24 km/h

Hoisting with / without load: 0.48/0.65 m/s

Lowering with load: 0.46/0.41 m/s

max. climbing ability: 20 %

Model series: KBD

Engine manuf.: Doosan

Engine type: D34

Engine power: 85.8 kW

Displacement: 3.409 l

No. of cylinders: 4

More technical details, like: standard tyres, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
