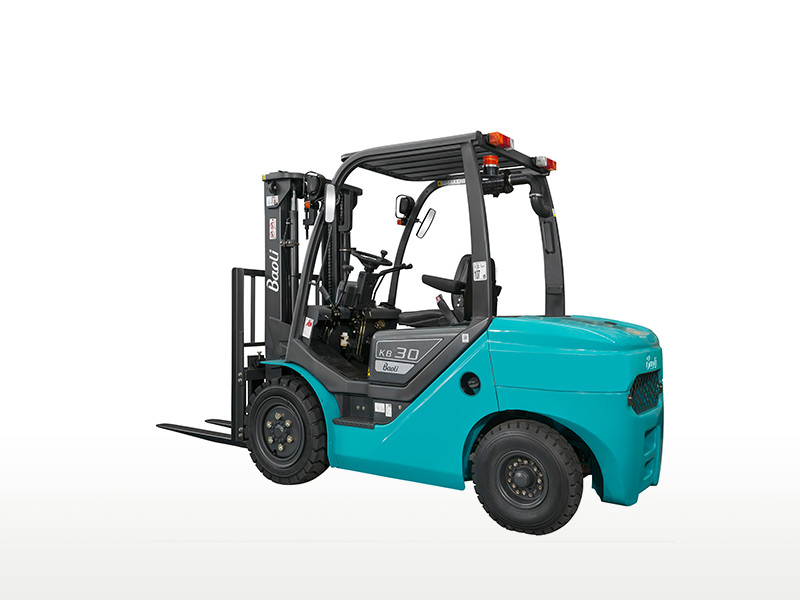

Baoli KBD 30 diesel forklift specs (2021 - 2025)

Name: Baoli KBD 30 Diesel Forklifts
Brand: Baoli

The Baoli KBD 30 diesel forklift, manufactured since 2021, has a weight of 4.4 tons and a nominal load capacity of 3 tons at the c…

The Baoli KBD 30 diesel forklift, manufactured since 2021, has a weight of 4.4 tons and a nominal load capacity of 3 tons at the center of gravity. It can lift loads up to a height of 3 meters, with a center of gravity at 500mm. The forklift has a maximum climbing ability of 20 percent. It has a hoisting speed of 0m/s with or without a load, and a lowering speed of 0m/s with a load. The total width of the forklift is 1225mm, and it can travel at a speed of 16km/h with or without a load. The turning radius is 2.46 meters, and the construction height is 2108mm.

KBD 30

Years of manufacture: 2021—2025

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
Events & News

Technical specs - KBD 30 Baoli

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 3 t

Centre of gravity: 500 mm

Transmission type: W

Weight: 4.4 t

Total width: 1225 mm

Construction height: 2108 mm

Turning radius: 2.46 m

Lifting height: 3 m

Travel speed with / without load: 16.5/17 km/h

Hoisting with / without load: 0.52/0.595 m/s

Lowering with load: 0.475/0.39 m/s

max. climbing ability: 20 %

Model series: KBD

Engine manuf.: Isuzu

Engine type: C-240

Engine power: 34.6 kW

Displacement: 2.369 l

No. of cylinders: 4

More technical details, like: standard tyres, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
