FD 80 Artison diesel forklift specs & dimensions (2008 - 2017)

The Artison FD 80 is a diesel forklift manufactured by Artison from 2008 to 2017. It has a weight of 10.6 tons and a nominal load …

The Artison FD 80 is a diesel forklift manufactured by Artison from 2008 to 2017. It has a weight of 10.6 tons and a nominal load at the center of gravity of 8 tons. The forklift can lift loads up to a height of 4 meters and has a center of gravity at 600 mm. It has a maximum climbing ability of 26 percent and a total width of 2060 mm. The turning radius of the forklift is 3.73 meters and it has a construction height of 2850 mm.

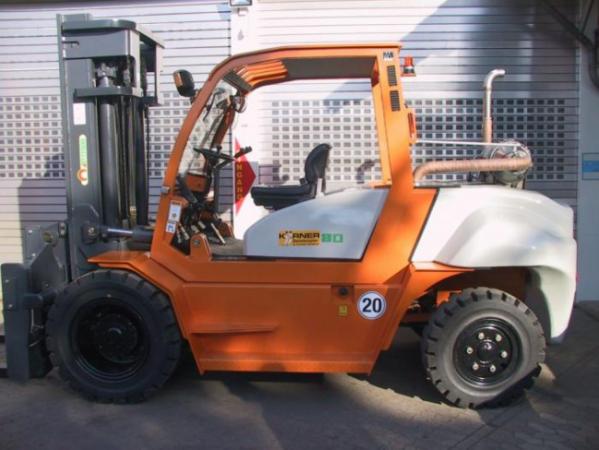

Diesel Forklifts Artison FD 80

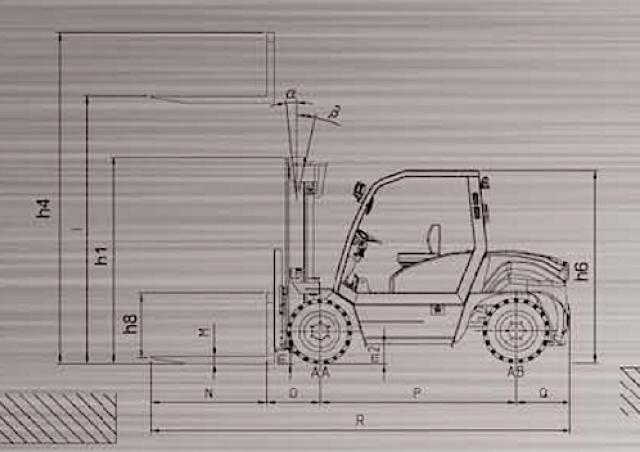

Artison FD 80 Dimensions and Size
Diesel Forklifts Artison FD 80
Artison FD 80 Dimensions and Size

Technical specs - FD 80 Artison

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
8 t
Centre of gravity
600 mm
Standard tyres
L4x/2
Transmission type
W
Weight
10.6 t
Total width
2060 mm
Construction height
2850 mm
Turning radius
3.73 m
Lifting height
4 m
Travel speed with / without load
26/30 km/h
Hoisting with / without load
0.46/0.5 m/s
Lowering with load
0.6/0.3 m/s
max. climbing ability
26 %
Model series
FD
Engine manuf.
Perkins
Engine type
1106C
Engine power
129.5 kW

More technical details, like: dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
