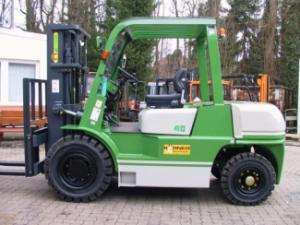

FD 40 Artison diesel forklift specs & dimensions (2008 - 2017)

Name: Artison FD 40 Diesel Forklifts
Brand: Artison

The Artison FD 40 is a diesel forklift manufactured from 2008 to 2017. It has a weight of 6.42 tons and a nominal load at the cent…

The Artison FD 40 is a diesel forklift manufactured from 2008 to 2017. It has a weight of 6.42 tons and a nominal load at the center of gravity of 4 tons. The lifting height reaches up to 4.5 meters, with a center of gravity at 600 mm. It has a maximum climbing ability of 21 percent. The total width of the forklift is 1450 mm, and it has a turning radius of 2.85 meters. The construction height is 2340 mm.

FD 40

Years of manufacture: 2008—2017

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - FD 40 Artison

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 4 t

Centre of gravity: 600 mm

Standard tyres: L2x/2

Transmission type: W

Weight: 6.42 t

Total width: 1450 mm

Construction height: 2340 mm

Turning radius: 2.85 m

Lifting height: 4.5 m

Travel speed with / without load: 23/13 km/h

Hoisting with / without load: 0.45/0.5 m/s

Lowering with load: 0.4/0.4 m/s

max. climbing ability: 21 %

Model series: FD

Engine manuf.: Perkins

Engine type: 1104D-44

Engine power: 56 kW

Emission level: EU III

More technical details, like: dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
