FD 35 Artison diesel forklift specs & dimensions (2008 - 2017)

Name: Artison FD 35 Diesel Forklifts
Brand: Artison

The Artison FD 35 is a diesel forklift manufactured from 2008 to 2017. It has a weight of 4.7 tons and a nominal load at the cente…

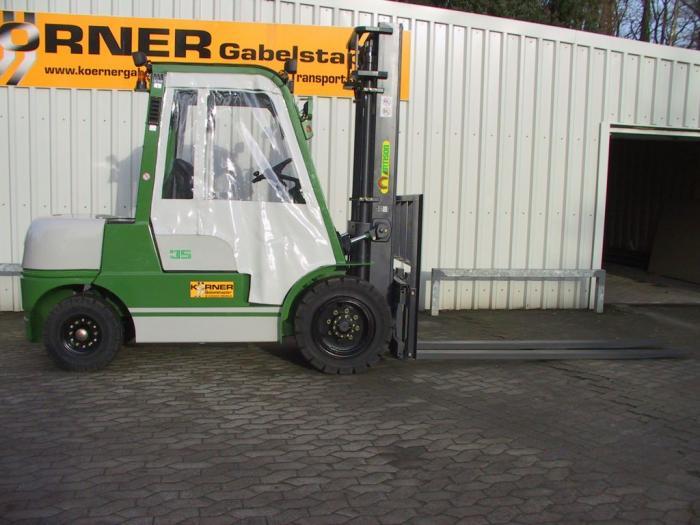

The Artison FD 35 is a diesel forklift manufactured from 2008 to 2017. It has a weight of 4.7 tons and a nominal load at the center of gravity of 3.5 tons. The lifting height reaches up to 4 meters, with a center of gravity at 600 mm. It has a maximum climbing ability of 21 percent. The total width of the forklift is 1290 mm, and the turning radius is 2.615 meters. The construction height is 2190 mm.

FD 35

Years of manufacture: 2008—2017

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - FD 35 Artison

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 3.5 t

Centre of gravity: 600 mm

Standard tyres: L2x/2

Transmission type: W

Weight: 4.7 t

Total width: 1290 mm

Construction height: 2190 mm

Turning radius: 2.615 m

Lifting height: 4 m

Travel speed with / without load: 16/18 km/h

Hoisting with / without load: 0.41/0.54 m/s

Lowering with load: 0.45/0.42 m/s

max. climbing ability: 21 %

Model series: FD

Engine manuf.: Yanmar

Engine type: 4TNE98

Engine power: 44 kW

More technical details, like: dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
