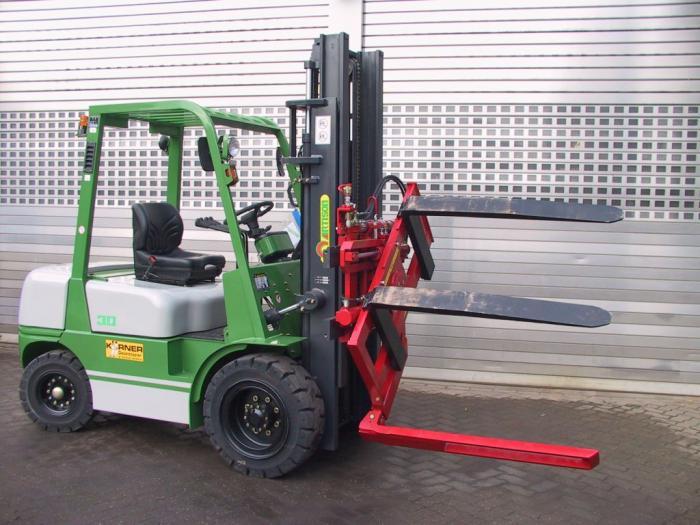

    Artison FD 30 Specifications & Technical Data (2008-2017)

    Rate this machine now!

    Nominal load at COG: 3t – Standard tyres: L2x/2 – Centre of gravity: 500mm – Transmission type: W – Weight: 4.5t – Total width: 1290mm

    Technical specs - FD 30 Artison

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

    Nominal load at COG 3 t
    Standard tyres L2x/2
    Centre of gravity 500 mm
    Transmission type W
    Weight 4.5 t
    Total width 1290 mm
    Construction height 2190 mm
    Turning radius 2.415 m
    Lifting height 4 m
    Travel speed with / without load 17/18 km/h
    Hoisting with / without load 0.42/0.54 m/s
    Lowering with load 0.45/0.42 m/s
    max. climbing ability 23 %
    Engine manuf. Yanmar
    Engine type 4TNE98
    Engine power 44 kW
    Engine power ###
    Dimension lxwxh ###
    Displacement ###
    Revolutions at max torque ###
    Max. torque ###
    No. of cylinders ###
    Cylinder bore x stroke ###
    Weight ###
    Emission level ###

    L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
