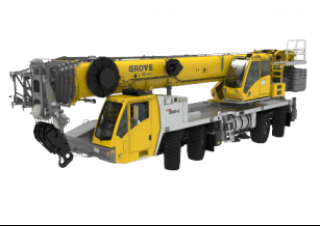

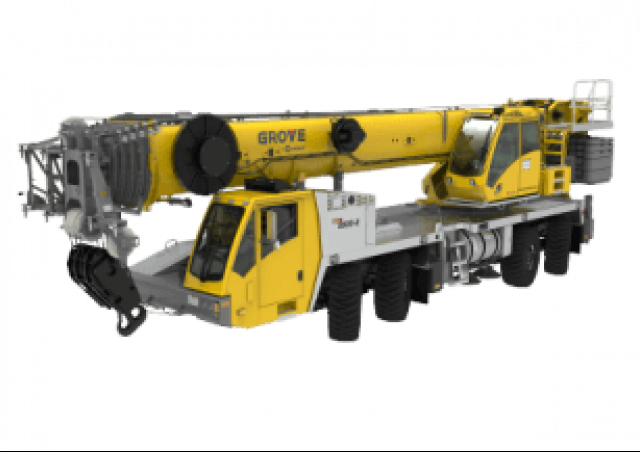

Grove TTS9000-2 crane - load chart, specs (2022 - 2024)

Rate this machine now!

max. carrying capacity: 104t – at reach: 2.4m – Carrying capacity: 1.67t – at max. reach: 48.8m – max. standard boom: 51.6m – Max.... Read more

max. carrying capacity: 104t – at reach: 2.4m – Carrying capacity: 1.67t – at max. reach: 48.8m – max. standard boom: 51.6m – Max. luffing jib: 17.6m

See load chart, specs, capacity, size and other technical data for Grove TTS9000-2 crane manufactured between 2022 - 2024. See information, like: max. carrying capacity: 104t – at reach: 2.4m – Carrying capacity: 1.67t – at max. reach: 48.8m – max. standard boom: 51.6m – Max. luffing jib: 17.6m and more.

Technical specs - TTS9000-2 Grove

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

  • max. carrying capacity 104 t
  • at reach 2.4 m
  • Carrying capacity 1.67 t
  • at max. reach 48.8 m
  • max. standard boom 51.6 m
  • Max. luffing jib 17.6 m
  • Travel speed 105 km/h
  • Number of axles 4
  • Standard tyres F: 445/65R 22.5, R: 445/65R 22.5
  • Model series TTS
  • Engine manuf. Cummins
  • Engine type X 12
  • Engine power 354 kW
  • Revolutions at max torque 1400 rpm
  • Max. torque 2102 Nm
  • No. of cylinders 6

More technical details, like: max. hook height, load torque, superstructure engine, undercarriage engine, fuel consumption range (min - max), wheels/drive/steering, axle load, tipping load, dimension lxwxh, displacement, cylinder bore x stroke, weight, emission level are available in the full technical specs.

Including hook block

Special equipment

  • 2nd winch
  • max. luffing jib
  • Foucault current brake
  • Add. ballast
  • Aux. luff. boom
  • Front axle block
