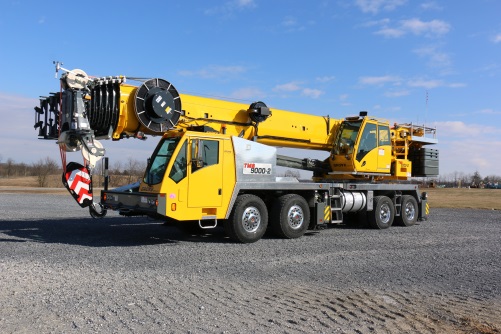

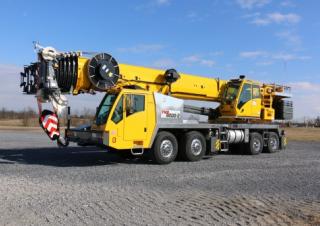

Grove TMS9000-2
- max. carrying capacity:
- 100 t
- at reach:
- 2.5 m
- Carrying capacity:
- 1.7 t
- at max. reach:
- 49 m
Grove TMS9000-2 crane - load chart, specs & dimensions (2017 - 2025)
Technical specs - TMS9000-2 Grove
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- max. carrying capacity
- 100 t
- at reach
- 2.5 m
- Carrying capacity
- 1.7 t
- at max. reach
- 49 m
- max. standard boom
- 51.6 m
- Max. luffing jib
- 17.6 m
- max. hook height
- 79.3 m
- Undercarriage engine
- 336 kW
- Travel speed
- 105 km/h
- Number of axles
- 4
- Wheels/Drive/Steering
- 8/4/4
- axle load
- 19 t
- Standard tyres
- F: 445/65R 22.5, R: 315/80R 22.5
- Tipping load
- 85 kg
- Model series
- TMS
- Engine manuf.
- Cummins
- Engine type
- ISX12
- Engine power
- 336 kW
- Displacement
- 12 l
- Revolutions at max torque
- 1400 rpm
- Max. torque
- 2102 Nm
- No. of cylinders
- 6
More technical details, like: load torque, superstructure engine, dimension lxwxh, cylinder bore x stroke, weight, emission level are available in the full technical specs.
Including hook block
Special equipment
- 2nd winch
-
No
- max. luffing jib
-
No
- Foucault current brake
-
No
- Add. ballast
-
No
- Aux. luff. boom
-
No
- Front axle block
-
No
Download datasheets (PDF)
