TMS800E Grove crane - load chart, specs & dimensions (2006 - 2026)

Model rating
10,00 / 10

max. carrying capacity: 70t – at reach: 2.5m – Carrying capacity: 1.7t – at max. reach: 36m – max. standard boom: 39m – Max. luffi…

max. carrying capacity: 70t – at reach: 2.5m – Carrying capacity: 1.7t – at max. reach: 36m – max. standard boom: 39m – Max. luffing jib: 17m

See load chart, specs, capacity, size and other technical data for Grove TMS800E crane manufactured between 2006 - 2026. See information, like: max. carrying capacity: 70t – at reach: 2.5m – Carrying capacity: 1.7t – at max. reach: 36m – max. standard boom: 39m – Max. luffing jib: 17m and more.

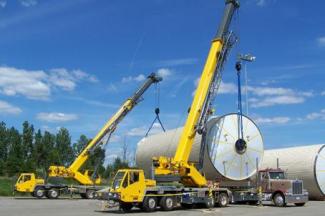

Truck Cranes Grove TMS800E
Truck Cranes Grove TMS800E
Truck Cranes Grove TMS800E
Truck Cranes Grove TMS800E
Truck Cranes Grove TMS800E
Truck Cranes Grove TMS800E
Truck Cranes Grove TMS800E
Truck Cranes Grove TMS800E

Technical specs - TMS800E Grove

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

max. carrying capacity
70 t
at reach
2.5 m
Carrying capacity
1.7 t
at max. reach
36 m
max. standard boom
39 m
Max. luffing jib
17 m
max. hook height
70.7 m
Load Torque
242 kNm
Undercarriage engine
300 kW
Travel speed
104 km/h
Number of axles
4
Wheels/Drive/Steering
8/4/4
axle load
21 t
Standard tyres
F: 445/65R 22.5, R: 315/80R 22.5
Tipping load
85 kg
Model series
TMS
Engine manuf.
Cummins
Engine type
QSM11
Engine power
300 kW
Displacement
10.8 l
Revolutions at max torque
1400 rpm
Max. torque
1898 Nm
No. of cylinders
6
Emission level
Stage IIIA

More technical details, like: superstructure engine, dimension lxwxh, cylinder bore x stroke, weight are available in the full technical specs.

Including hook block

Special equipment

2nd winch
No
max. luffing jib
No
Foucault current brake
No
Add. ballast
No
Aux. luff. boom
No
Front axle block
No

Download datasheets (PDF)

Reviews

Model rating
10,00 / 10
Quotation mark

Grove TMS800E user from United States

Decent machine for a 80 ton. Now u can get a 110 in same package so it's outdated for rental companies. It's only customer base is owner's of small businesses. Not a big market considering u can dum down a 110 and have same options
