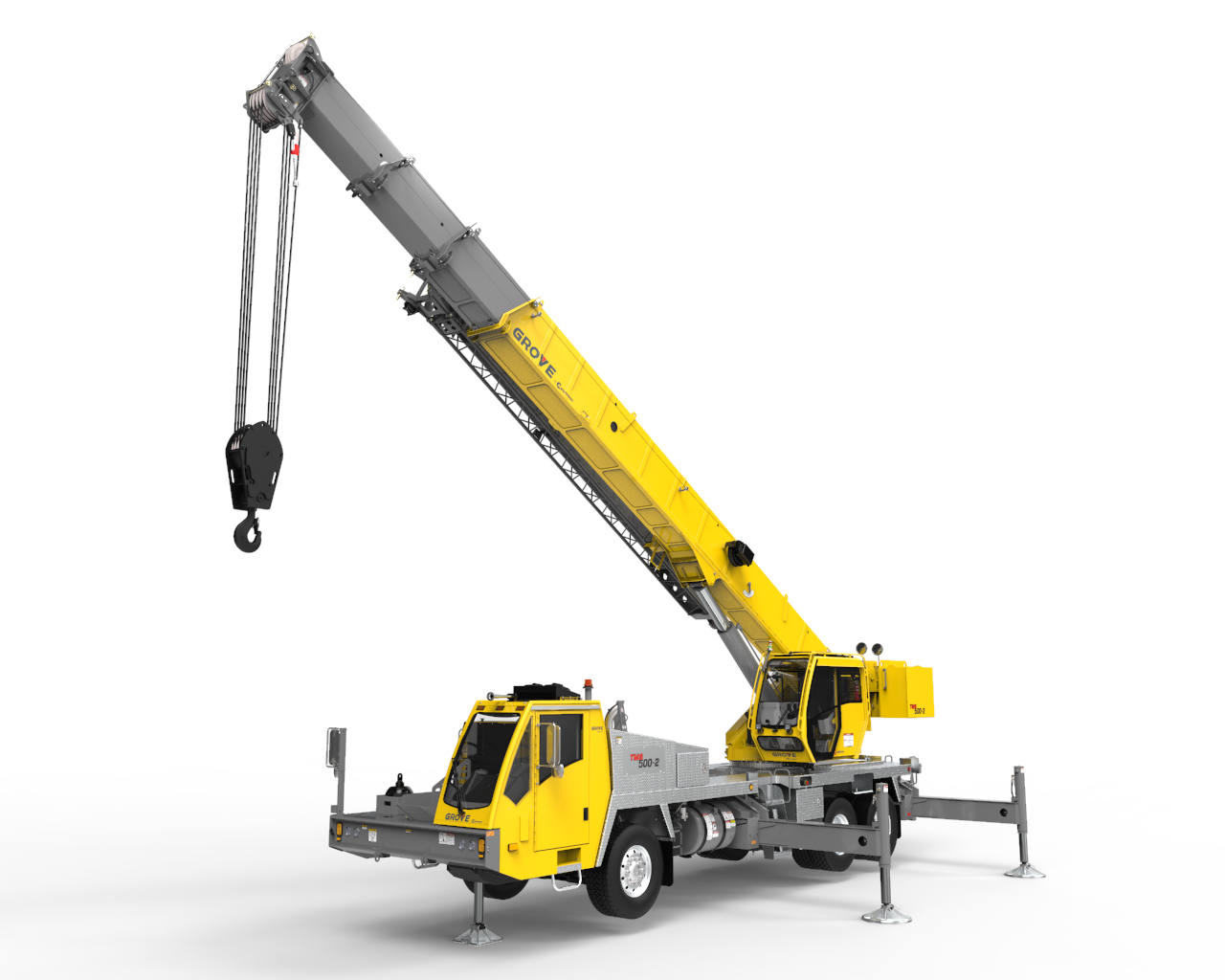

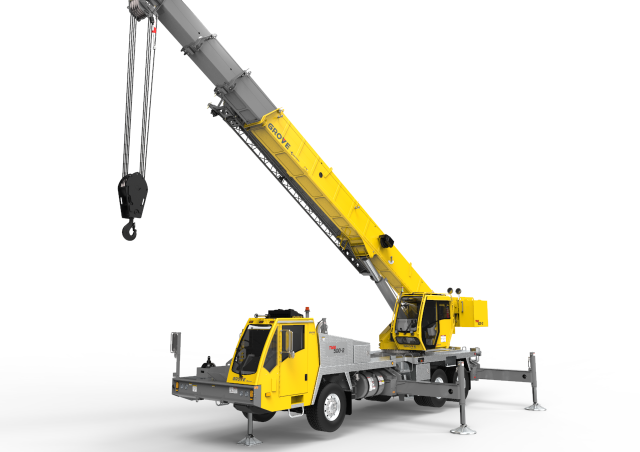

Grove TMS500-2 crane - load chart, specs (2021 - 2023)
max. carrying capacity: 36.3t – at reach: 2.2m – Carrying capacity: 0.69t – at max. reach: 26m – max. standard boom: 29m – Max. lu... Read more
max. carrying capacity: 36.3t – at reach: 2.2m – Carrying capacity: 0.69t – at max. reach: 26m – max. standard boom: 29m – Max. luffing jib: 8.8m
See load chart, specs, capacity, size and other technical data for Grove TMS500-2 crane manufactured between 2021 - 2023. See information, like: max. carrying capacity: 36.3t – at reach: 2.2m – Carrying capacity: 0.69t – at max. reach: 26m – max. standard boom: 29m – Max. luffing jib: 8.8m and more.
Technical specs - TMS500-2 Grove
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.
- max. carrying capacity 36.3 t
- at reach 2.2 m
- Carrying capacity 0.69 t
- at max. reach 26 m
- max. standard boom 29 m
- Max. luffing jib 8.8 m
- Undercarriage engine 261 kW
- Travel speed 105 km/h
- Number of axles 3
- Wheels/Drive/Steering 6/4/2
- Standard tyres F: 425/65R22.5, R: 11R22.5
- Model series TMS
- Engine manuf. Cummins
- Engine type ISL9
- Engine power 261 kW
- Displacement 9 l
- Revolutions at max torque 1400 rpm
- Max. torque 1159 Nm
More technical details, like: max. hook height, load torque, superstructure engine, average fuel consumption, fuel consumption range (min - max), axle load, tipping load, dimension lxwxh, no. of cylinders, cylinder bore x stroke, weight, emission level are available in the full technical specs.
Including hook block
Special equipment
- 2nd winch
- max. luffing jib
- Foucault current brake
- Add. ballast
- Aux. luff. boom
- Front axle block
