224 EC-H ** Liebherr crane - load chart, specs & dimensions (1998 - 2010)
.jpg)
Visit Liebherr live at
Technical specs - 224 EC-H ** Liebherr
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Nominal torque
- 2240 kNm
- Max. load
- 12 t
- Load at max. Reach
- 4.15 t
- Reach at max. Load
- 20.4 m
- max. standard boom
- 50 m
- max. hook height
- 40.1 m
- Tower system
- 256 HC
- Connection load
- 68 KVA
- Model series
- 224
More technical details, like: max. reach, max. luffing jib, min. luffing jib, tower height, ropes, max. hoisting speed, drive system, hoist unit are available in the full technical specs.
If alignment change (2/4) is possible, the loads for quadruple alignment applies. In case of crane on anchor bolt, the anchor is not included in base price. Incl. concrete ballast, crane control and spindles with plates (latter not valid with rail-bound travelling, incl. cable drum and cruciform base)
Special equipment
- Cabin
-
Yes
- Add. ballast
-
Yes
- Rail carrier
-
No
- Climbing device
-
Yes
- Undercarriage
-
No
- Cross girder
-
No
Events
Visit Liebherr live at
Machine inspection
Ask for inspection of your Liebherr 224 EC-H ** from experts
Mevas is an international operating inspection service for used heavy machinery. Construction machinery inspectors are available in more than 20 countries.
Use this service to minimise the risk when buying used equipment. An inspection by Mevas costs less than repairing a defective hydraulic cylinder.
Provided by:
Buy & Rent
Compare Liebherr 224 EC-H ** with similar Tower Cranes - Trolley Boom - Top-slewing
.jpg)
Liebherr 224 EC-H **
- Nominal torque:
- 2240 kNm
- Max. load:
- 12 t
- Load at max. Reach:
- 4.15 t
- Reach at max. Load:
- 20.4 m
.jpg)
Liebherr 180 EC-B 10 *
- Nominal torque:
- 1800 kNm
- Max. load:
- 10 t
- Load at max. Reach:
- 3.05 t
- Reach at max. Load:
- 18.4 m
Zeppelin ZBK 180/2-TS17-UW60
- Nominal torque:
- 1932 kNm
- Max. load:
- 12 t
- Load at max. Reach:
- 3.2 t
- Reach at max. Load:
- 17 m
Spare parts & Components
Get spare parts for Liebherr 224 EC-H ** easily from our partners
Do your lookup for high quality parts for Liebherr 224 EC-H ** online!
With a few, easy steps, you will find generic and genuine parts and replacements in well-catalogued lists. Wether you are dealer or an owner, LECTURA can lead you to the right direction.
Check the best offers from our partners and order the Tower Cranes - Trolley Boom - Top-slewing spare parts easily today - worldwide.
Transport
Tower Cranes - Trolley Boom - Top-slewing Transport & Shipping Services
In case you want a transport for your machine, apply our services. Search for the most appropriate transport quotes for Tower Cranes - Trolley Boom - Top-slewing formed on transport dimensions and weights. Our partners provide large-scale options to satisfy your wishes.
Data provided by
News
Lifting and access News by LECTURA 31.07.2026
.jpg)

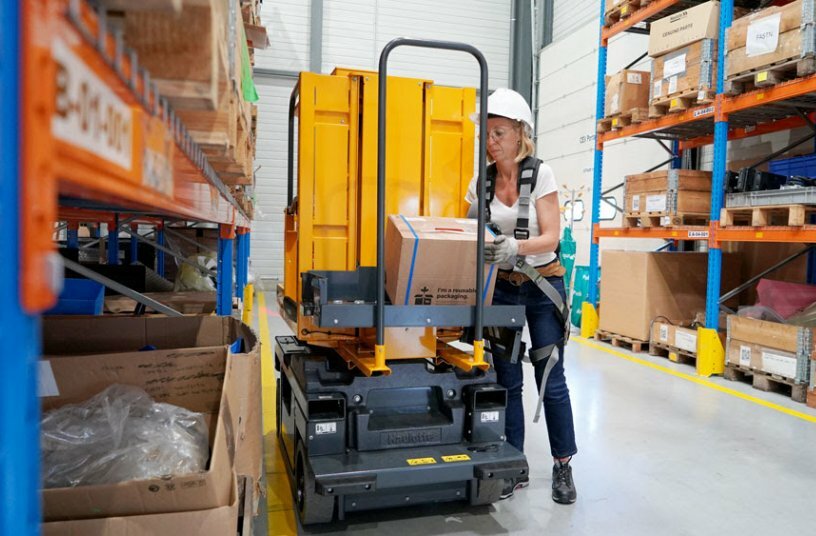

STAR 8 Picking: a new model in the STAR vertical mast range
