Lectura specs Cranes Tower Cranes - Trolley Boom - Top-slewing Tower Cranes - Trolley Boom - Top-slewing Comansa Comansa 21LC600 specifications

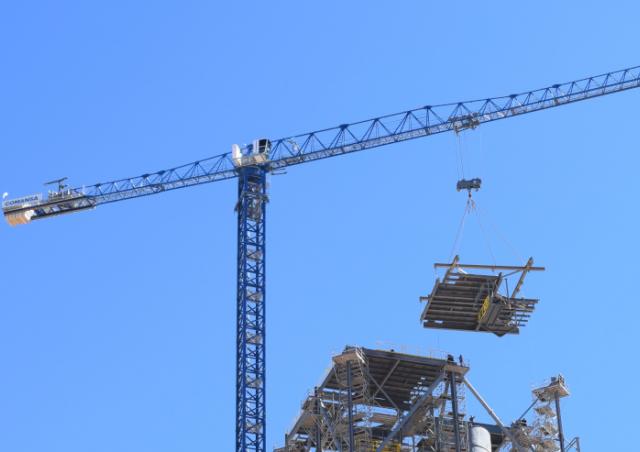

Comansa 21LC600 crane - load chart, specs (2020 - 2024)

Rate this machine now!

Max. load: 25t – max. reach: 80m – Load at max. Reach: 4.51t – Reach at max. Load: 27.2m – max. standard boom: 80m – min. luffing ... Read more

Max. load: 25t – max. reach: 80m – Load at max. Reach: 4.51t – Reach at max. Load: 27.2m – max. standard boom: 80m – min. luffing jib: 30m

See load chart, specs, capacity, size and other technical data for Comansa 21LC600 crane manufactured between 2020 - 2024. See information, like: Max. load: 25t – max. reach: 80m – Load at max. Reach: 4.51t – Reach at max. Load: 27.2m – max. standard boom: 80m – min. luffing jib: 30m and more.

Technical specs - 21LC600 Comansa

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

  • Max. load 25 t
  • max. reach 80 m
  • Load at max. Reach 4.51 t
  • Reach at max. Load 27.2 m
  • max. standard boom 80 m
  • min. luffing jib 30 m
  • Tower height 93.3 m
  • max. hook height 86.9 m
  • max. hoisting speed 166 m/min
  • Drive system EFU6-65-62
  • Connection load 95 KVA
  • Hoist unit 65 kW
  • Model series LC2100

More technical details, like: nominal torque, max. luffing jib, ropes, tower system are available in the full technical specs.

If alignment change (2/4) is possible, the loads for quadruple alignment applies. In case of crane on anchor bolt, the anchor is not included in base price. Incl. concrete ballast, crane control and spindles with plates (latter not valid with rail-bound travelling, incl. cable drum and cruciform base)

Special equipment

  • Cabin
  • Add. ballast
  • Rail carrier
  • Climbing device
  • Undercarriage
  • Cross girder
