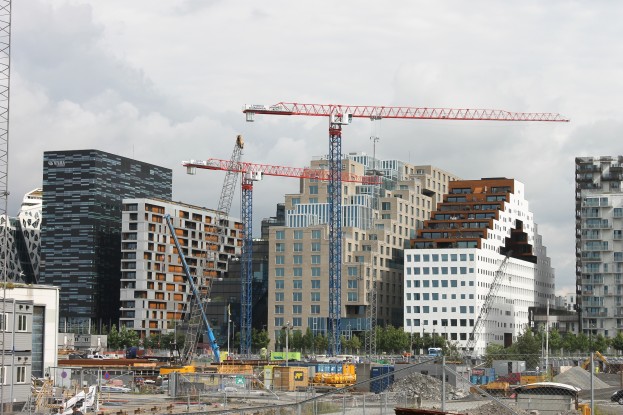

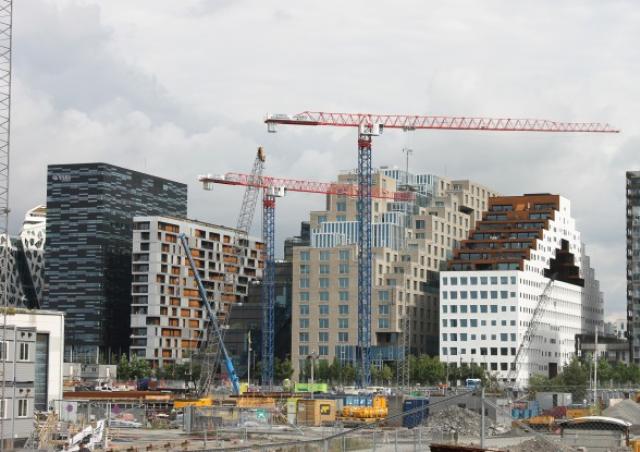

Comansa 21CM650 crane - load chart, specs (2020 - 2023)
Max. load: 25t – max. reach: 80m – Load at max. Reach: 4.51t – Reach at max. Load: 28.2m – max. standard boom: 80m – min. luffing ... Read more
Max. load: 25t – max. reach: 80m – Load at max. Reach: 4.51t – Reach at max. Load: 28.2m – max. standard boom: 80m – min. luffing jib: 30m
See load chart, specs, capacity, size and other technical data for Comansa 21CM650 crane manufactured between 2020 - 2023. See information, like: Max. load: 25t – max. reach: 80m – Load at max. Reach: 4.51t – Reach at max. Load: 28.2m – max. standard boom: 80m – min. luffing jib: 30m and more.
Technical specs - 21CM650 Comansa
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.
- Max. load 25 t
- max. reach 80 m
- Load at max. Reach 4.51 t
- Reach at max. Load 28.2 m
- max. standard boom 80 m
- min. luffing jib 30 m
- Tower height 93.3 m
- max. hook height 86.4 m
- max. hoisting speed 131 m/min
- Drive system HFU4-80-62
- Connection load 110 KVA
- Hoist unit 80 kW
- Model series LC2100
More technical details, like: nominal torque, max. luffing jib, ropes, tower system are available in the full technical specs.
If alignment change (2/4) is possible, the loads for quadruple alignment applies. In case of crane on anchor bolt, the anchor is not included in base price. Incl. concrete ballast, crane control and spindles with plates (latter not valid with rail-bound travelling, incl. cable drum and cruciform base)
Special equipment
- Cabin
- Add. ballast
- Rail carrier
- Climbing device
- Undercarriage
- Cross girder
