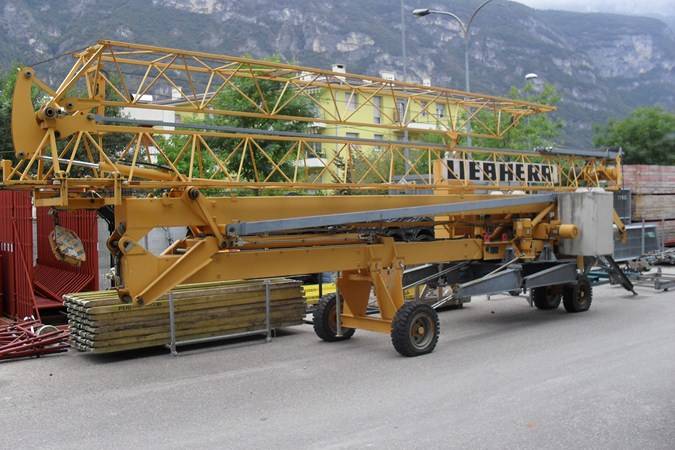

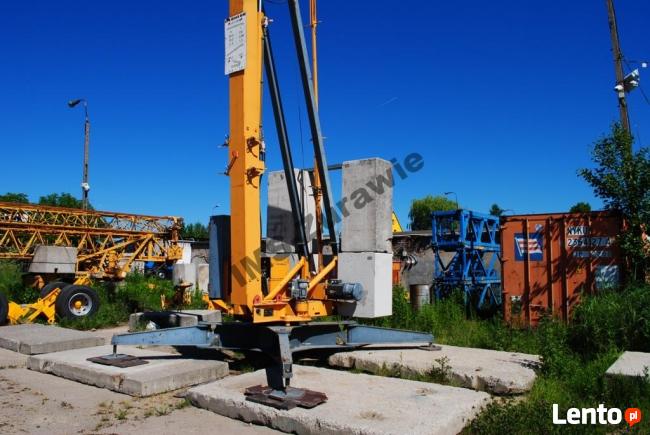

13 H Liebherr crane - load chart, specs & dimensions (2007 - 2017)
.jpg)
.jpg)
Visit Liebherr live at
Technical specs - 13 H Liebherr
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Nominal torque
- 130 kNm
- Max. load
- 1.5 t
- Load at max. Reach
- 0.5 t
- Reach at max. Load
- 9.3 m
- max. standard boom
- 22 m
- max. hook height
- 16 m
- Connection load
- 8 KVA
- Hoist unit
- 3.5 kW
- Model series
- H
More technical details, like: max. reach, max. luffing jib, min. luffing jib, tower height, ropes, max. hoisting speed, tower system, drive system are available in the full technical specs.
If alignment change (2/4) is possible, the loads for quadruple alignment applies. In case of crane on anchor bolt, the anchor is not included in base price. Incl. concrete ballast, crane control and spindles with plates (latter not valid with rail-bound travelling, incl. cable drum and cruciform base)
Special equipment
- Cabin
-
No
- Rail carrier
-
No
- Road Carrige
-
No
- Steep jib pos.
-
Yes
- Hot-dipped galvanised
-
No
- Ballasting device
-
No
Download datasheets (PDF)
