    Lectura specs Cranes Tower Cranes - Trolley Boom - Bottom-slewing Tower Cranes - Trolley Boom - Bottom-slewing Condecta Condecta E 4310 R 2,5 m specifications

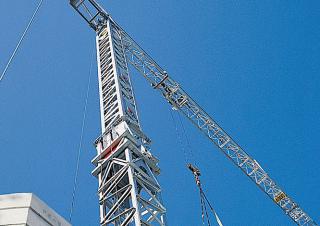

    Condecta E 4310 R 2,5 m crane - load chart, specs (2004 - 2016)

    Rate this machine now!

    Nominal torque: 560kNm – Max. load: 4t – Load at max. Reach: 1t – Reach at max. Load: 15.6m – max. standard boom: 43m – max. hook ... Read more

    Nominal torque: 560kNm – Max. load: 4t – Load at max. Reach: 1t – Reach at max. Load: 15.6m – max. standard boom: 43m – max. hook height: 24m

    See load chart, specs, capacity, size and other technical data for Condecta E 4310 R 2,5 m crane manufactured between 2004 - 2016. See information, like: Nominal torque: 560kNm – Max. load: 4t – Load at max. Reach: 1t – Reach at max. Load: 15.6m – max. standard boom: 43m – max. hook height: 24m and more.

    Technical specs - E 4310 R 2,5 m Condecta

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Nominal torque 560 kNm
    • Max. load 4 t
    • Load at max. Reach 1 t
    • Reach at max. Load 15.6 m
    • max. standard boom 43 m
    • max. hook height 24 m
    • Drive system FU
    • Connection load 23 KVA
    • Hoist unit 11 kW

    More technical details, like: max. reach, max. luffing jib, min. luffing jib, tower height, ropes, max. hoisting speed, tower system are available in the full technical specs.

    If alignment change (2/4) is possible, the loads for quadruple alignment applies. In case of crane on anchor bolt, the anchor is not included in base price. Incl. concrete ballast, crane control and spindles with plates (latter not valid with rail-bound travelling, incl. cable drum and cruciform base)

    Special equipment

    • Cabin
    • Rail carrier
    • Road Carrige
    • Steep jib pos.
    • Hot-dipped galvanised
    • Ballasting device

    Carbon footprint calculator for Tower Cranes - Trolley Boom - Bottom-slewing

    See the ERA equipment CO2 Calculator to estimate the CO2 emissions per hour of use of the Condecta E 4310 R 2,5 m or alternative Tower Cranes - Trolley Boom - Bottom-slewing.

    The carbon footprint calculation can be carried out for different energy consumption scenarios or other variables.

    or go to the ERA Equipment CO2 Calculator to find out how to reduce your carbon footprint.

    service provided by ERA

    Buy & Rent

    Compare Condecta E 4310 R 2,5 m with similar Tower Cranes - Trolley Boom - Bottom-slewing

    Press 1 image

    Condecta E 4310 R 2,5 m

    Nominal torque: 560 kNm

    Max. load: 4 t

    Load at max. Reach: 1 t

    Reach at max. Load: 15.6 m

    Press 1 image
    Potain GTMR 336 B 20 TDPC 10/2,5m

    Nominal torque: 560 kNm

    Max. load: 4 t

    Load at max. Reach: 1.15 t

    Reach at max. Load: 14.7 m

    Press 1 image
    Zeppelin ZBS 40

    Nominal torque: 524 kNm

    Max. load: 4 t

    Load at max. Reach: 1.5 t

    Reach at max. Load: 13.1 m

    Press 1 image
    Liebherr 42 K-2,5 m

    Nominal torque: 450 kNm

    Max. load: 4 t

    Load at max. Reach: 1.11 t

    Reach at max. Load: 12 m
