    Lectura specs Cranes Tower Cranes - Trolley Boom - Bottom-slewing Tower Cranes - Trolley Boom - Bottom-slewing Arcomet Arcomet A 45 D specifications

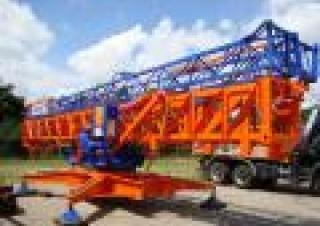

    Arcomet A 45 D crane - load chart, specs (2005 - 2018)

    Rate this machine now!

    Nominal torque: 710kNm – Max. load: 5t – Load at max. Reach: 1.3t – Reach at max. Load: 14.4m – max. standard boom: 45m – max. hoo... Read more

    Nominal torque: 710kNm – Max. load: 5t – Load at max. Reach: 1.3t – Reach at max. Load: 14.4m – max. standard boom: 45m – max. hook height: 30.5m

    See load chart, specs, capacity, size and other technical data for Arcomet A 45 D crane manufactured between 2005 - 2018. See information, like: Nominal torque: 710kNm – Max. load: 5t – Load at max. Reach: 1.3t – Reach at max. Load: 14.4m – max. standard boom: 45m – max. hook height: 30.5m and more.

    Technical specs - A 45 D Arcomet

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Nominal torque 710 kNm
    • Max. load 5 t
    • Load at max. Reach 1.3 t
    • Reach at max. Load 14.4 m
    • max. standard boom 45 m
    • max. hook height 30.5 m
    • Connection load 32 KVA
    • Hoist unit 15 kW

    More technical details, like: max. reach, max. luffing jib, min. luffing jib, tower height, ropes, max. hoisting speed, tower system, drive system are available in the full technical specs.

    If alignment change (2/4) is possible, the loads for quadruple alignment applies. In case of crane on anchor bolt, the anchor is not included in base price. Incl. concrete ballast, crane control and spindles with plates (latter not valid with rail-bound travelling, incl. cable drum and cruciform base)

    Special equipment

    • Cabin
    • Rail carrier
    • Road Carrige
    • Steep jib pos.
    • Hot-dipped galvanised
    • Ballasting device
