Tadano GR-600EX-3
- max. carrying capacity:
- 60 t
- at reach:
- 3 m
- Carrying capacity:
- 0.9 t
- at max. reach:
- 43 m

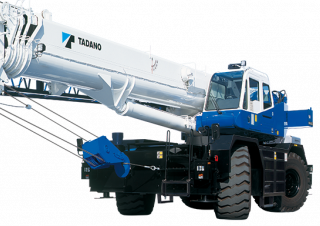

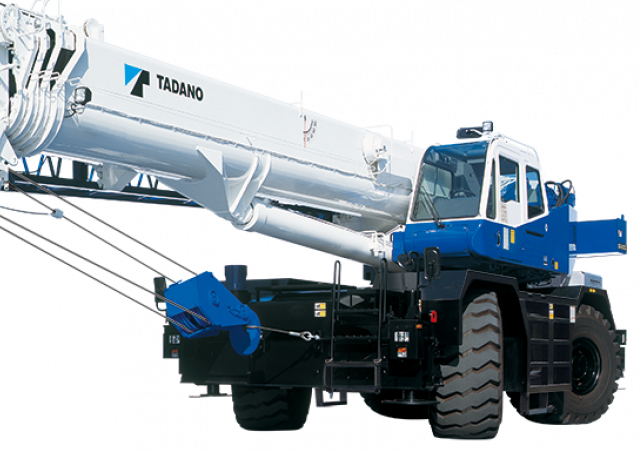

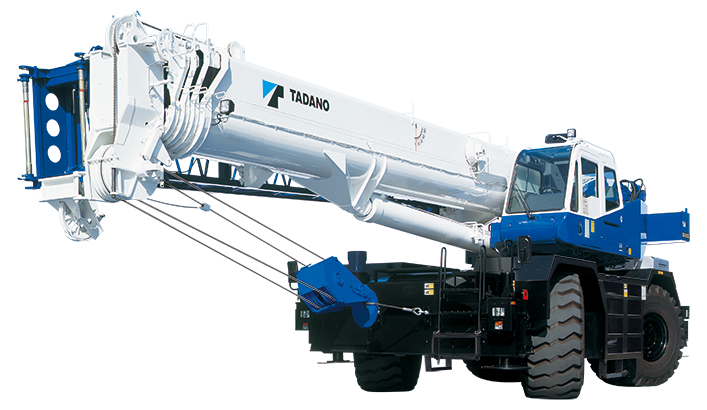

Tadano GR-600EX-3 crane - load chart, specs (2020 - 2025)
Technical specs - GR-600EX-3 Tadano
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- max. carrying capacity
- 60 t
- at reach
- 3 m
- Carrying capacity
- 0.9 t
- at max. reach
- 43 m
- max. standard boom
- 43 m
- Min. standard boom
- 11 m
- Max. luffing jib
- 17.7 m
- Engine power
- 200 kW
- Travel speed
- 36 km/h
- Number of axles
- 2
- axle load
- 43.735 t
- Standard tyres
- 29.5-25 22PR
- Model series
- EX
- Engine manuf.
- Mitsubishi
- Engine type
- 6M60-TL
- Displacement
- 7.54 l
- Revolutions at max torque
- 1400 rpm
- Max. torque
- 785 Nm
- No. of cylinders
- 6
- Cylinder bore x stroke
- 118x115 mm
More technical details, like: max. hook height, load torque, wheels/drive/steering, tipping load, dimension lxwxh, weight, emission level are available in the full technical specs.
Including hook block
Special equipment
- 2nd winch
-
No
- max. luffing jib
-
Yes
- Add. ballast
-
No
