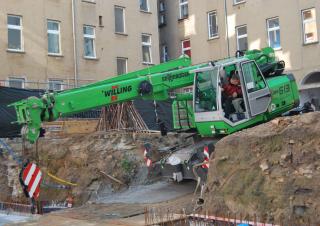

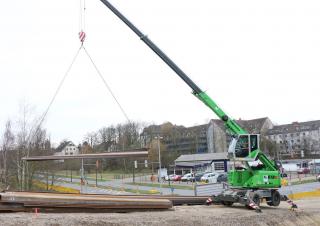

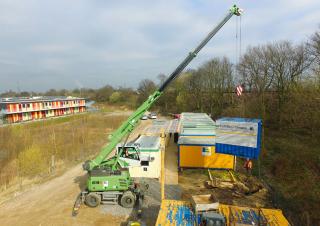

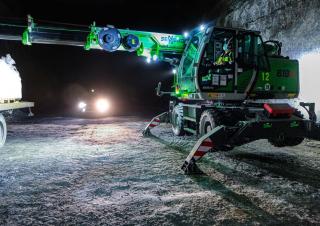

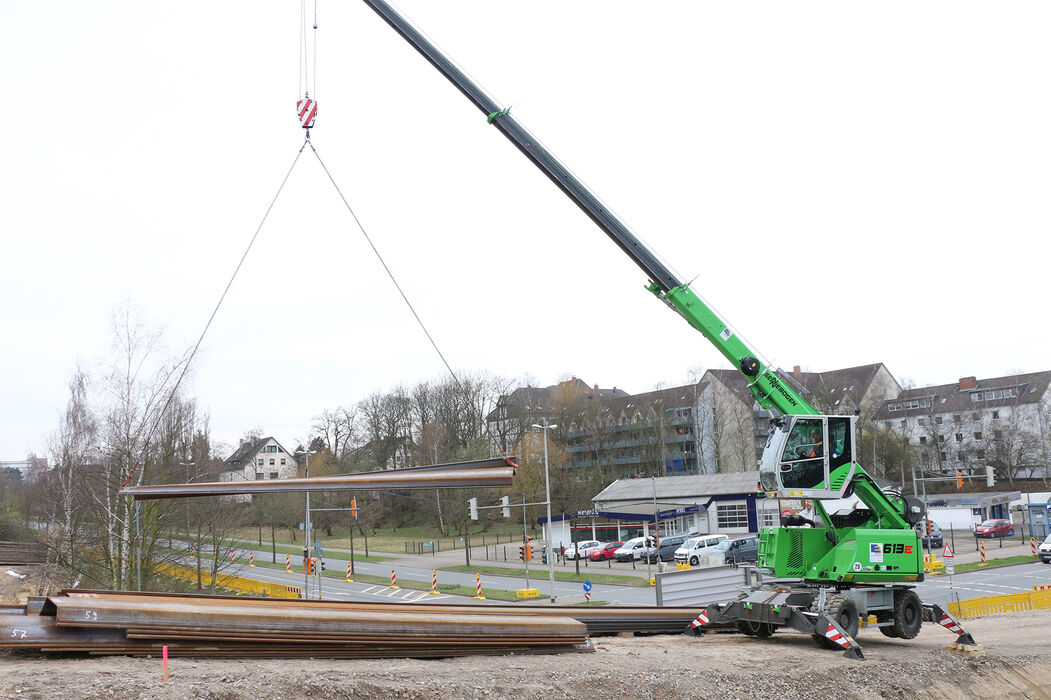

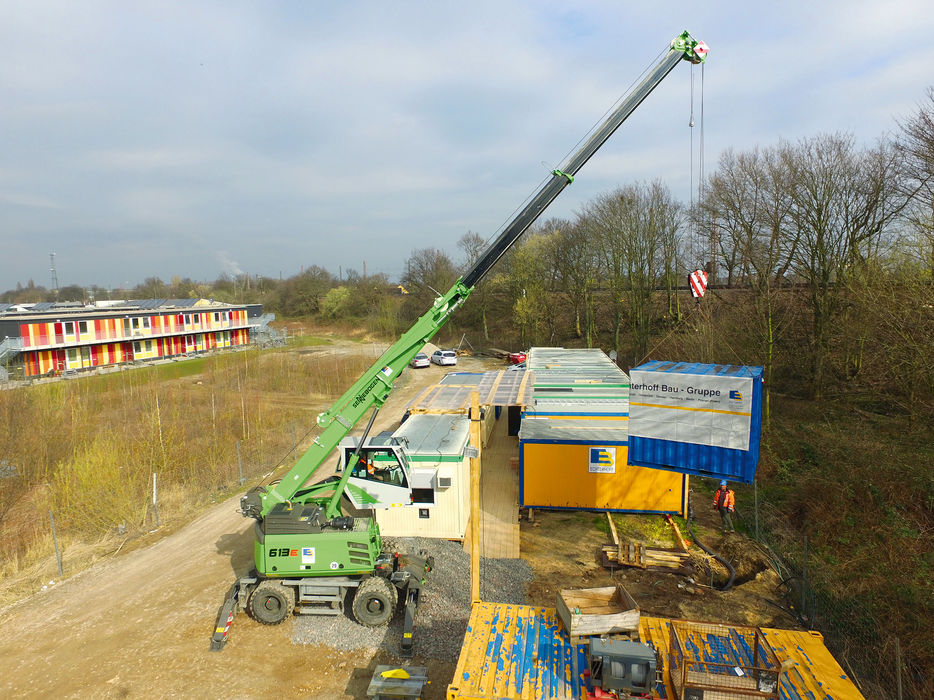

Sennebogen 613E crane - load chart, specs (2021 - 2023)

Rate this machine now!

max. carrying capacity: 16t – at reach: 2m – Carrying capacity: 2.1t – at max. reach: 13m – max. standard boom: 14.6m – Min. stand... Read more

max. carrying capacity: 16t – at reach: 2m – Carrying capacity: 2.1t – at max. reach: 13m – max. standard boom: 14.6m – Min. standard boom: 6.1m

See load chart, specs, capacity, size and other technical data for Sennebogen 613E crane manufactured between 2021 - 2023. See information, like: max. carrying capacity: 16t – at reach: 2m – Carrying capacity: 2.1t – at max. reach: 13m – max. standard boom: 14.6m – Min. standard boom: 6.1m and more.

Technical specs - 613E Sennebogen

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

  • max. carrying capacity 16 t
  • at reach 2 m
  • Carrying capacity 2.1 t
  • at max. reach 13 m
  • max. standard boom 14.6 m
  • Min. standard boom 6.1 m
  • Max. luffing jib 5 m
  • max. hook height 24 m
  • Engine power 100 kW
  • Travel speed 20 km/h
  • Number of axles 2
  • Wheels/Drive/Steering 4/4/4
  • Standard tyres 8x 10.000-20 tires
  • Model series E

More technical details, like: load torque, average fuel consumption, fuel consumption range (min - max), axle load, tipping load, engine manuf., engine type, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders...

Show more

Including hook block

Special equipment

  • 2nd winch
  • max. luffing jib
  • Add. ballast
