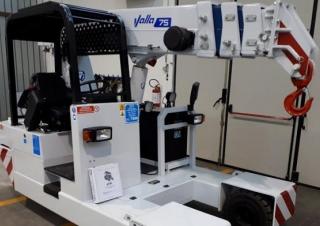

    Valla 75 D crane - load chart, specs (2005 - 2023)

    Rate this machine now!

    max. carrying capacity: 7.5t – at reach: 0.5m – Carrying capacity: 0.9t – at max. reach: 5.4m – max. standard boom: 8m – Min. stan... Read more

    max. carrying capacity: 7.5t – at reach: 0.5m – Carrying capacity: 0.9t – at max. reach: 5.4m – max. standard boom: 8m – Min. standard boom: 0.5m

    See load chart, specs, capacity, size and other technical data for Valla 75 D crane manufactured between 2005 - 2023. See information, like: max. carrying capacity: 7.5t – at reach: 0.5m – Carrying capacity: 0.9t – at max. reach: 5.4m – max. standard boom: 8m – Min. standard boom: 0.5m and more.

    Technical specs - 75 D Valla

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • max. carrying capacity 7.5 t
    • at reach 0.5 m
    • Carrying capacity 0.9 t
    • at max. reach 5.4 m
    • max. standard boom 8 m
    • Min. standard boom 0.5 m
    • max. hook height 8 m
    • Load Torque 37.5 kNm
    • Power source D
    • Engine power 8 kW
    • Travel speed 13 km/h
    • Standard tyres F: 21x8 - R9 R: 6,5 - R10

    More technical details, like: tipping load, outriggers spacing length, outriggers spacing width, weight, number of axles, engine manuf., engine type, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders...

    Show more

    including hook block/s and freely moveable with the nominal load

    Special equipment

    • 2nd winch
    • max. luffing jib
    • Passenger cabin
    • MOT approval
    • Add. hook
