180 E Valla crane - load chart, specs & dimensions (2004 - 2025)

max. carrying capacity: 18t – at reach: 1m – Carrying capacity: 3t – at max. reach: 7m – max. standard boom: 10.5m – Min. standard…

max. carrying capacity: 18t – at reach: 1m – Carrying capacity: 3t – at max. reach: 7m – max. standard boom: 10.5m – Min. standard boom: 1m

See load chart, specs, capacity, size and other technical data for Valla 180 E crane manufactured between 2004 - 2025. See information, like: max. carrying capacity: 18t – at reach: 1m – Carrying capacity: 3t – at max. reach: 7m – max. standard boom: 10.5m – Min. standard boom: 1m and more.

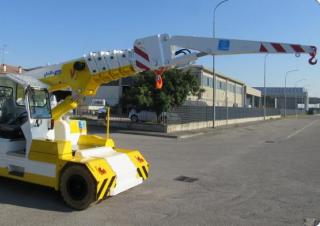

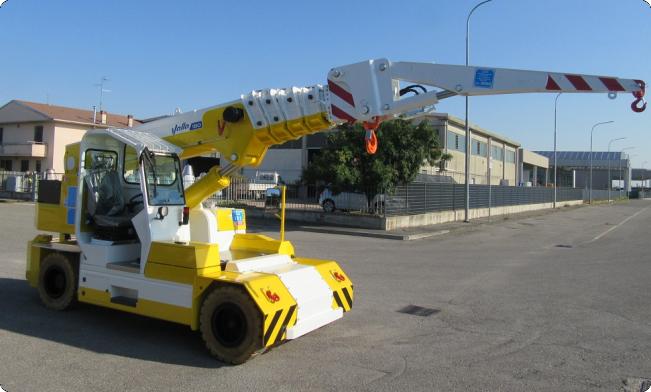

Industrial mobile cranes Valla 180 E
Industrial mobile cranes Valla 180 E
Industrial mobile cranes Valla 180 E
Industrial mobile cranes Valla 180 E

Technical specs - 180 E Valla

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

max. carrying capacity
18 t
at reach
1 m
Carrying capacity
3 t
at max. reach
7 m
max. standard boom
10.5 m
Min. standard boom
1 m
max. hook height
10 m
Load Torque
180 kNm
Power source
Electric
Engine power
33 kW
Standard tyres
F: 355/65 - R15 R: 355/65 - R15
Model series
E

More technical details, like: travel speed, tipping load, outriggers spacing length, outriggers spacing width, weight, number of axles, engine manuf., engine type, dimension lxwxh, displacement, revolutions at max torque, max. torque...

More technical details, like: travel speed, tipping load, outriggers spacing length, outriggers spacing width, weight, number of axles, engine manuf., engine type, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

including hook block/s and freely moveable with the nominal load

Special equipment

2nd winch
No
max. luffing jib
No
Passenger cabin
No
MOT approval
No
Add. hook
No
