MC 450S JMG crane - load chart, specs & dimensions (2022 - 2026)

max. carrying capacity: 45t – Carrying capacity: 8.3t – max. standard boom: 7.8m – Min. standard boom: 1m – max. hook height: 13m …

max. carrying capacity: 45t – Carrying capacity: 8.3t – max. standard boom: 7.8m – Min. standard boom: 1m – max. hook height: 13m – Power source: Electric

See load chart, specs, capacity, size and other technical data for JMG MC 450S crane manufactured between 2022 - 2026. See information, like: max. carrying capacity: 45t – Carrying capacity: 8.3t – max. standard boom: 7.8m – Min. standard boom: 1m – max. hook height: 13m – Power source: Electric and more.

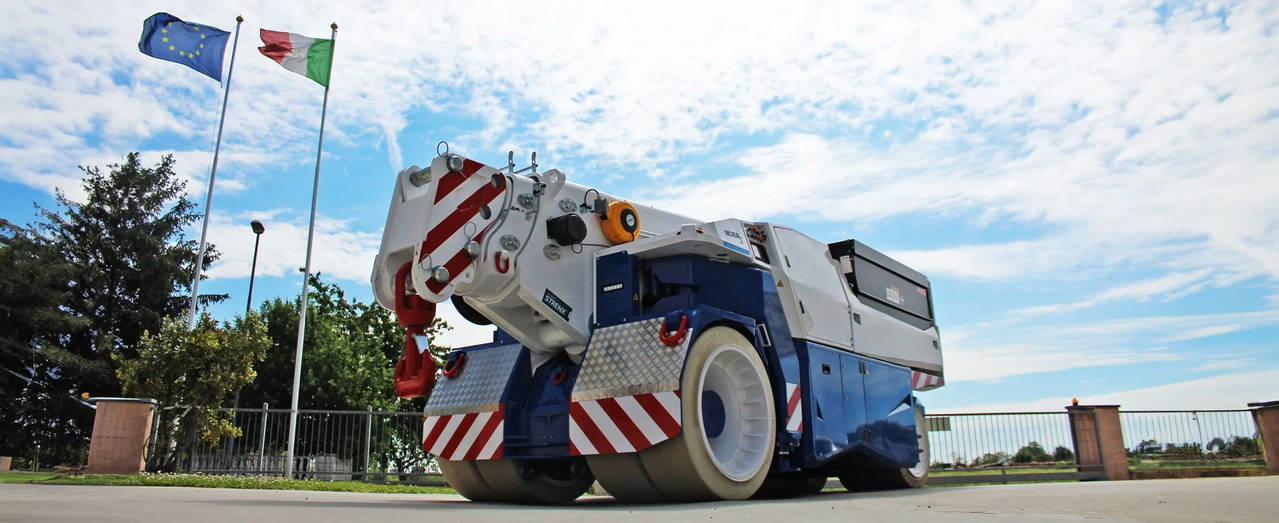

Industrial mobile cranes JMG MC 450S
Industrial mobile cranes JMG MC 450S
Industrial mobile cranes JMG MC 450S
Industrial mobile cranes JMG MC 450S
Industrial mobile cranes JMG MC 450S
Industrial mobile cranes JMG MC 450S

Technical specs - MC 450S JMG

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

max. carrying capacity
45 t
Carrying capacity
8.3 t
max. standard boom
7.8 m
Min. standard boom
1 m
max. hook height
13 m
Power source
Electric
Engine power
45 kW
Standard tyres
Fr. 4x 40x16-30
Weight
37 t
Number of axles
2
Model series
MC

More technical details, like: at reach, at max. reach, load torque, travel speed, tipping load, outriggers spacing length, outriggers spacing width, engine manuf., engine type, dimension lxwxh, displacement, revolutions at max torque...

More technical details, like: at reach, at max. reach, load torque, travel speed, tipping load, outriggers spacing length, outriggers spacing width, engine manuf., engine type, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

including hook block/s and freely moveable with the nominal load

Special equipment

2nd winch
No
max. luffing jib
No
Passenger cabin
No
MOT approval
No
Add. hook
No
